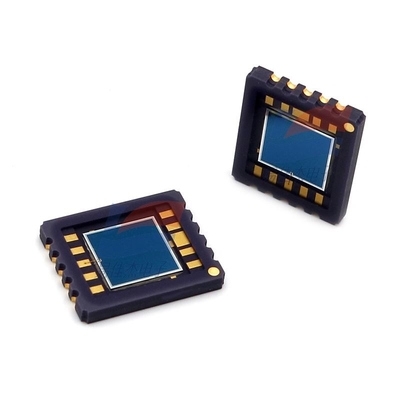

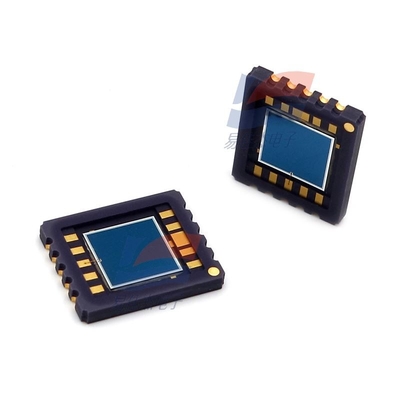

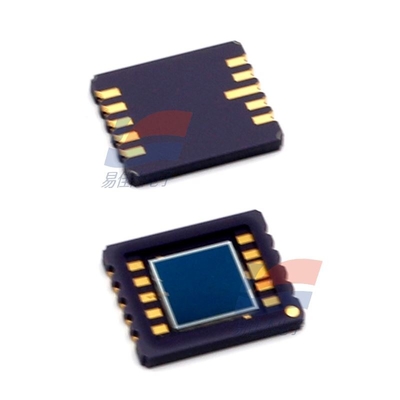

S5106 Si Pin Photodiode Chip Carrier Package For Surface Mounting Suitable For Reflow Soldering

Product Description:

S5106 Si Pin Photodiode Chip Carrier Package For Surface Mounting Suitable For Reflow Soldering

Features:

S5106 Si PIN is a Si PIN photodiode sealed in the chip support, suitable for surface mount using automatic solder reflux process. The large photosensitive area is suitable for spatial light transmission that requires a wide viewing Angle. Other application areas include POS scanners, photometers and analytical instruments.

Product features

● Photosensitive area: 5 × 5 mm

● Surface mount type ceramic chip carrier package

● Suitable for reflow welding

● High sensitivity

Cutoff frequency (typical value) 20 MHz

Noise equivalent power (typical value) 1.6×10-14 W/ hz1/2

Measurement conditions Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, F =1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted

Specifications:
