Product Details:
|
| Class: | Gauge Pressure, Absolute Pressure, Differential Pressure | Measurement: | 10"H2O, 0 ~ 1,5,15,30,50,100 Psi |
|---|---|---|---|
| Nonlinearity: | ±0.1% Nonlinearity | Output: | 0 ~ 100mV |
| Package: | Plastic Seal | ||
| Highlight: | PID Vacuum Pressure Sensor,Vacuum Pressure Sensor Nonlinearity,Sphygmomanometers Pressure Sensor Medical Applications |
||
Product Description:

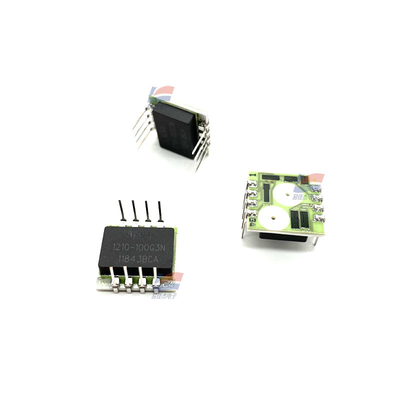

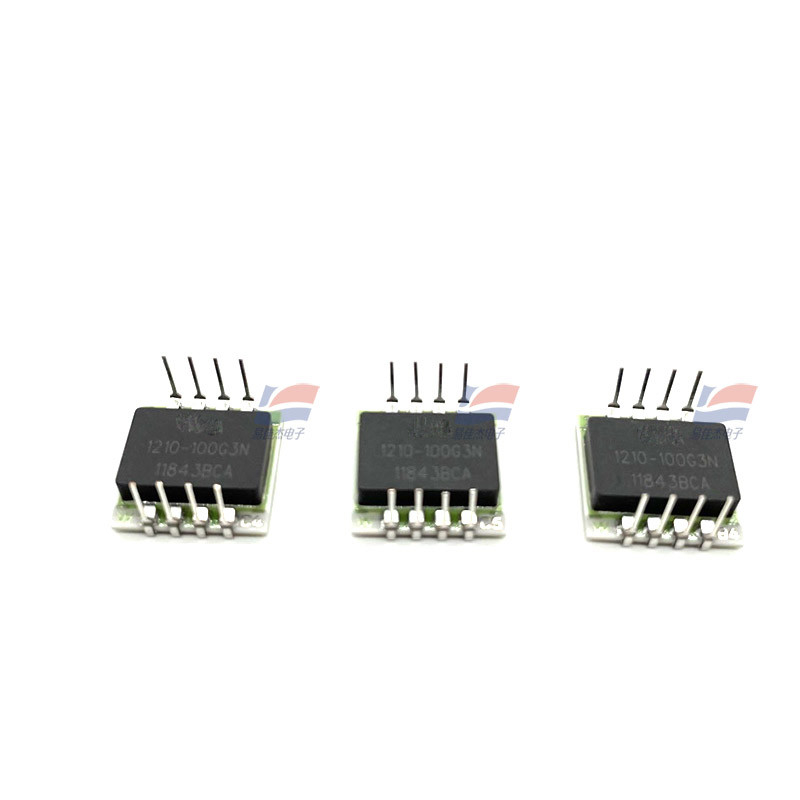

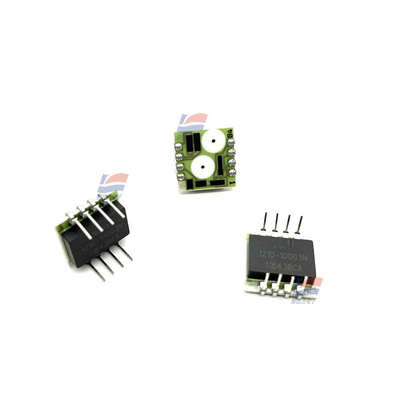

NPC-1210-100G-3N Pressure Sensors Can Be Used For Medical Sphygmomanometers Etc
Features:
Pressure sensor NPC1210-100G-3N NPC1210-100G-3N
This series can be used for the absolute pressure, gauge pressure and differential pressure detection of compatible gas media, with excellent performance.
The characteristics of
· Low cost and interchangeability;
· Dual in-line (PID) structure, suitable for printed circuit board (PCB) installation
· Temperature compensation range is 0~60℃
· Constant current 1.5mA power supply
· In the form of absolute pressure, gauge pressure and differential pressure
· Pressure range: 0~2.5KPa to 0~700KPa
· High accuracy: ±0.1%
application
· Medical equipment: blood pressure monitor, ventilator and perfusion pump
· Air conditioning and ventilation equipment
· Airflow detection
· Computer peripheral equipment
· Process control
· Cable leak detection
Specifications:
| Power supply | 1.5mA |
| Operating temperature | -40℃~125℃ |
| Electrical connection | PC board installation |
| Features | Constant current power supply, temperature compensation (0~60℃) |
| Typical applications | Medical devices (ventilators, monitors), gas flow measurement, heating, cooling, process control |
