-301A-700AT Ultra-small Volume Ultra-low Cost Surface-mounted Silicon Pressure Sensors

Product Description:

-301A-700AT Ultra-small Volume Ultra-low Cost Surface-mounted Silicon Pressure Sensors

Features:

NovaSensor's series are surface-mounted silicon pressure sensors that use silicon-silicon fusion technology and a highly stable ultra-small piezoresistive chip embedded in a plastic shell. SERIES ADOPTS THE PIN STRUCTURE OF INTEGRATED CIRCUIT AND CAN BE INSTALLED IN SMALL OCCASIONS, THUS PROVIDING A CHEAP PRODUCT FOR OEM CUSTOMERS IN LARGE QUANTITIES. SERIES, UNDER CONSTANT VOLTAGE SUPPLY, GENERATES a VOLTAGE SIGNAL proportional TO THE input pressure, which can be amplified or added by the signal regulation circuit to meet the needs of their own products.

The series is used for most non-corrosive gas and dry air measurements.

The characteristics of

Ultra-small size, ultra-low cost

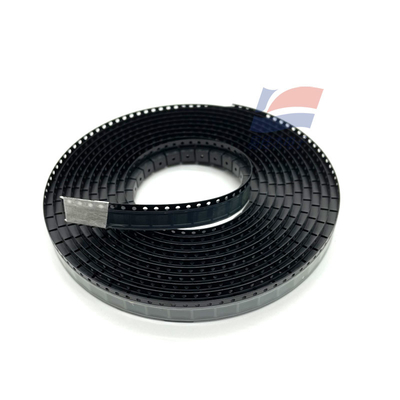

Surface mount (SO-8) construction, suitable for automatic component mounting

Operating temperature: -40℃~125℃

Static accuracy < ±0.2%FSO

Absolute pressure ranges of 100, 200 and 700Kpa are available

application

Automobile tire pressure testing

Medical equipment

Air conditioning equipment

Cable leak detection

Pressure switch and controller

Portable barometer, altimeter

Instrument for consumer use

Specifications:
