Product Details:
|
| Full Scale Span(5) (0 To 85°C) @ VS = 5.1 Volts: | VFSS — 4.692 — VDC | Accuracy(6) (0 To 85°C): | ±1.5 %VFSS |
|---|---|---|---|
| Sensitivity: | ΔV/ΔΡ — 20 — MV/kPa | Response Time(7): | TR — 1.0 — Msec |
| Output Source Current At Full Scale Output: | IO+ — 0.1 — MAdc | Warm-Up Time(8): | 20 — Msec |
| Offset Stability(9): | ±0.5 — %VFSS | ||
| Highlight: | MPX4250AP Pressure Sensor,250KPa Pressure Sensor |
||
Product Description:

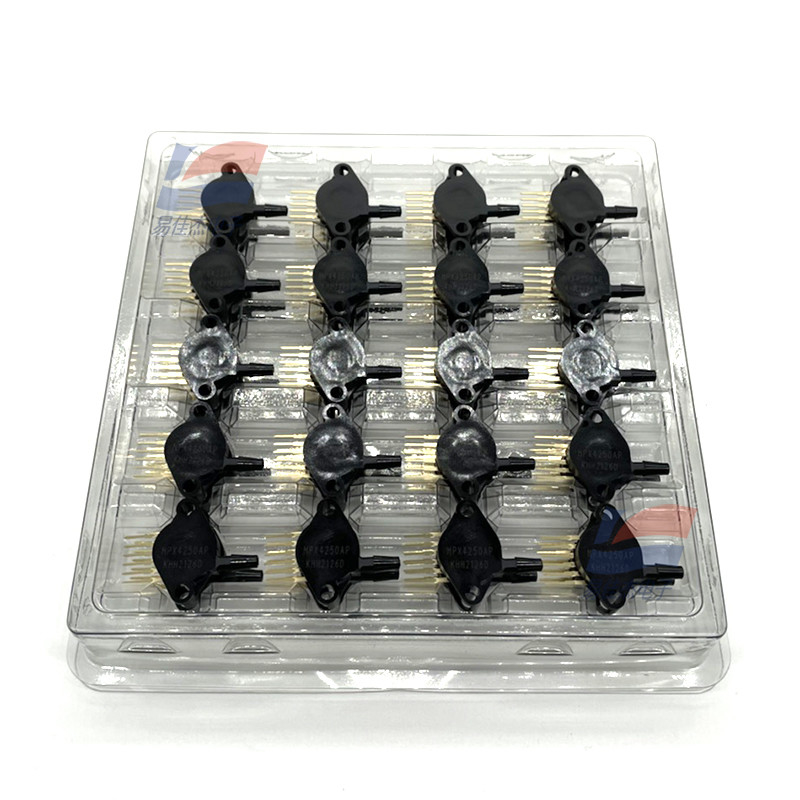

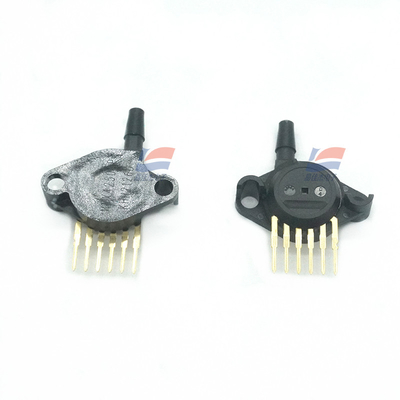

MPX4250AP 20KPa-250KPa Pressure Sensor For Non-automotive Applications
Features:
The MPX4250A series Manifold Absolute Pressure (MAP) sensor for
engine control is designed to sense absolute air pressure within the intake
manifold. This measurement can be used to compute the amount of fuel
required for each cylinder.
The MPX4250A series piezoresistive transducer is a state-of-the-art
monolithic silicon pressure sensor designed for a wide range of applications,
particularly those employing a microcontroller or microprocessor with A/D
inputs. This transducer combines advanced micromachining techniques, thinfilm
metallization and bipolar processing to provide an accurate, high-level
analog output signal that is proportional to the applied pressure. The small
form factor and high reliability of on-chip integration make the Freescale
sensor a logical and economical choice for the automotive system engineer.
• 1.5% Maximum Error Over 0° to 85°C
• Specifically Designed for Intake Manifold Absolute Pressure Sensing in Engine Control Systems
• Patented Silicon Shear Stress Strain Gauge
• Temperature Compensated Over -40° to +125°C
• Offers Reduction in Weight and Volume Compared to Existing Hybrid Modules
• Durable Epoxy Unibody Element or Thermoplastic Small Outline, Surface Mount Package
Specifications:
| Differential Pressure Range(1) | POP 20 — 250 kPa |
| Supply Voltage(2) | VS 4.85 5.1 5.35 VDC |
| Supply Current | IO — 7.0 10 mAdc |
|
Minimum Pressure Offset(3) (0 to 85°C) @ VS = 5.1 Volts |
VOFF 0.133 0.204 0.274 VDC |
|
Full Scale Output(4) (0 to 85°C) @ VS = 5.1 Volts |
VFSO 4.826 4.896 4.966 VDC |
