Product Details:
|
| Pressure Hysteresis(5) (0 To 100 KPa): | ±0.1 — %VFSS | Temperature Hysteresis(5) (–40°C To +125°C): | ±0.5 — %VFSS |
|---|---|---|---|
| Temperature Effect On Full Scale Span(5): | TCVFSS –1.0 — 1.0 %VFSS | Temperature Effect On Offset(5): | TCVoff –1.0 — 1.0 MV |
| Input Impedance: | Zin 1000 — 2500 W | Output Impedance: | Zout 1400 — 3000 W |
| Highlight: | MPX2100A Pressure Sensor,Compensatory Pressure Sensor,14.5Psi Pressure Sensor |
||
Product Description:

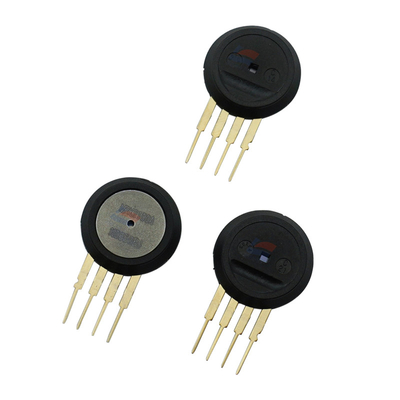

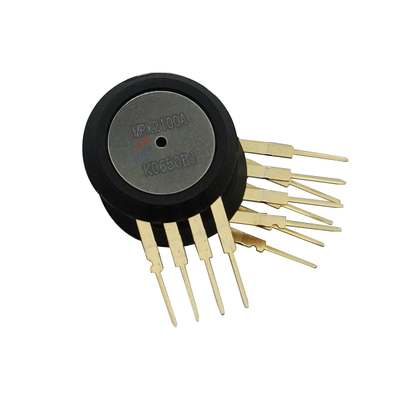

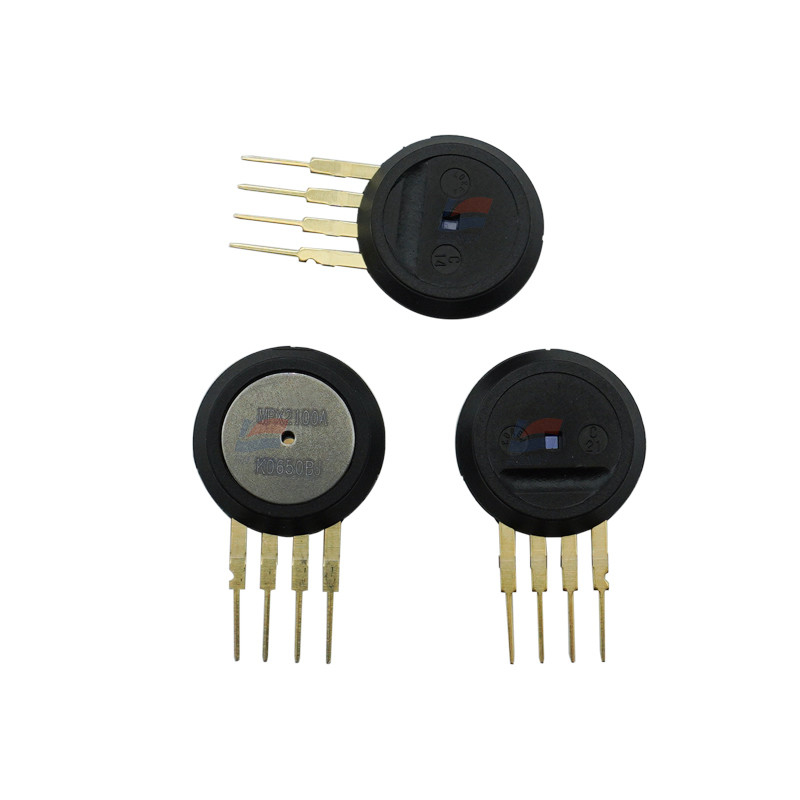

MPX2100A 0-100 Kpa (0-14.5Psi) With Compensatory Pressure Sensor
Features:
The MPX2100 series device is a silicon piezoresistive pressure sensors providing a
highly accurate and linear voltage output — directly proportional to the applied pressure.
The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin–film
resistor network integrated on–chip. The chip is laser trimmed for precise span and offset
calibration and temperature compensation.
Temperature Compensated Over 0°C to +85°C
Unique Silicon Shear Stress Strain Gauge
Easy to Use Chip Carrier Package Options
Available in Absolute, Differential and Gauge Configurations
Ratiometric to Supply Voltage
±0.25% Linearity (MPX2100D)
Application Examples
Pump/Motor Controllers
Robotics
Level Indicators
Medical Diagnostics
Pressure Switching
Barometers
Altimeters
Figure 1 illustrates a block diagram of the internal circuitry on the stand–alone
pressure sensor chip.
Specifications:
| Overpressure(8) (P1 > P2) | Pmax 200 kPa |
| Burst Pressure(8) (P1 > P2) | Pburst 1000 kPa |
| Storage Temperature | Tstg –40 to +125 °C |
| Operating Temperature | TA –40 to +125 °C |
| Pressure Range(1) | POP 0 — 100 kPa |
| Supply Voltage(2) | VS — 10 16 Vdc |
| Supply Current | Io — 6.0 — mAdc |
| Full Scale Span(3) MPX2100A, MPX2100D | VFSS 38.5 40 41.5 mV |
