Product Details:
|
| Accuracy(6): | 2.5 %VFSS | Sensitivity: | V/P — 45 — MV/kPa |
|---|---|---|---|
| Response Time(7): | TR — 1.0 — MS | Output Source Current At Full Scale Output: | Io+ — 0.1 — MAdc |
| Warm–Up Time(8): | 20 — MSec | Offset Stability(9): | 0.5 — %VFSS |
| Highlight: | Integrated Output Pressure Sensor,14.5psi Pressure Sensor,Temperature Compensation Pressure Sensor |
||
Product Description:

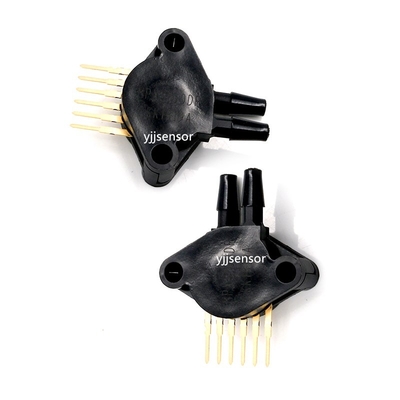

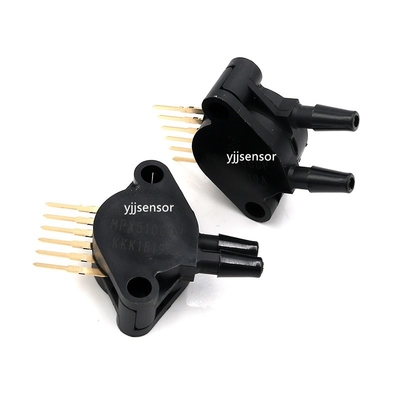

MPX5100DP 0-100KPa(0-14.5psi) Temperature Compensation And Amplification Integrated Output Pressure Sensor
Features:
The MPX5100 series piezoresistive transducer is a state–of–the–art monolithic silicon
pressure sensor designed for a wide range of applications, but particularly those
employing a microcontroller or microprocessor with A/D inputs. This patented, single
element transducer combines advanced micromachining techniques, thin–film metallization,
and bipolar processing to provide an accurate, high level analog output signal that is
proportional to the applied pressure.
2.5% Maximum Error over 0° to 85°C
Ideally suited for Microprocessor or Microcontroller–Based Systems
Patented Silicon Shear Stress Strain Gauge
Available in Absolute, Differential and Gauge Configurations
Durable Epoxy Unibody Element
Easy–to–Use Chip Carrier Option
Specifications:
| Overpressure(8) (P1 > P2) | Pmax 400-400kPa |
| Burst Pressure(8) (P1 > P2) | Pburst 1000 kPa |
| Storage Temperature | Tstg –40 to +125 °C |
| Operating Temperature | TA –40 to +125 °C |
| Pressure Range(1) | POP 0-15 0 100 115 100kPa |
| Supply Voltage(2) | VS 4.75 5.0 5.25 Vdc |
| Supply Current | Io — 7.0 10 mAdc |
