Product Details:
|
| Sensitivity: | V/P — 6.4 — MV/kPa | Response Time(7): | TR — 1.0 — Ms |
|---|---|---|---|
| Output Source Current At Full Scale Output: | IO+ — 0.1 — MAdc | Warm–Up Time(8): | 20 — Ms |
| Weight, Basic Element (Case 867): | 4.0 Grams | ||
| Highlight: | Signal Amplification Pressure Sensor,High Output Pressure Sensor |
||
Product Description:

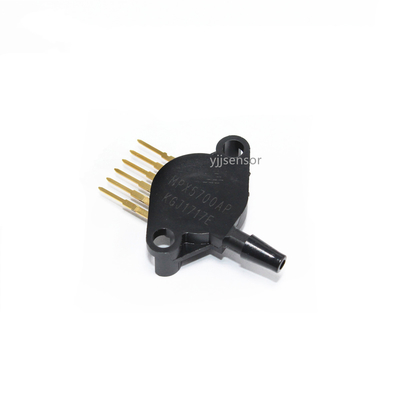

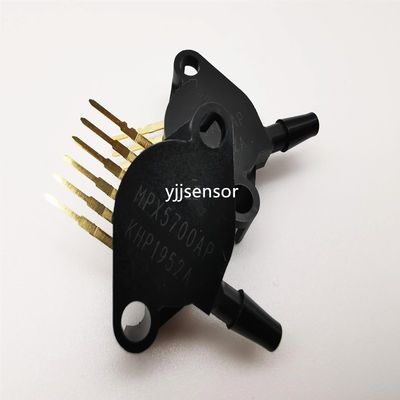

MPX5700AP 0-700 kpa (0-100 psi) Temperature Compensation And Signal Amplification Integrated High Output Pressure Sensor
Features:
The MPX5700 series piezoresistive transducer is a state–of–the–art monolithic silicon
pressure sensor designed for a wide range of applications, but particularly those
employing a microcontroller or microprocessor with A/D inputs. This patented, single
element transducer combines advanced micromachining techniques, thin–film metallization,
and bipolar processing to provide an accurate, high level analog output signal that
is proportional to the applied pressure.
2.5% Maximum Error over 0° to 85°C
Ideally Suited for Microprocessor or Microcontroller–Based Systems
Available in Absolute, Differential and Gauge Configurations
Patented Silicon Shear Stress Strain Gauge
Durable Epoxy Unibody Element
Figure 3 illustrates the Differential/Gauge basic chip carrier
(Case 867). A fluorosilicone gel isolates the die surface
and wire bonds from the environment, while allowing the
pressure signal to be transmitted to the sensor diaphragm.
(For use of the MPX5700D in a high pressure, cyclic application,
consult the factory.)
Specifications:
| Differential Pressure Range(1) Gauge, Differential: MPX5700D Absolute: MPX5700A | POP 0-15— 700-700kPa |
| Supply Voltage(2) | VS 4.75 5.0 5.25 Vdc |
| Supply Current | Io – 7.0 10 mAdc |
|
Zero Pressure Offset(3) Gauge, Differential: (0 to 85°C) Absolute (0 to 85°C) |
Voff 0.088 0.184 0.2 0.313 0.409 Vdc |
| Full Scale Output(4) (0 to 85°C) | VFSO 4.587 4.7 4.813 Vdc |
| Full Scale Span(5) (0 to 85°C) | VFSS — 4.5 — Vdc |
| Accuracy(6) (0 to 85°C) | ± 2.5 %VFSS |
