Product Details:
|
| Measuring Range: | 100kPa... 0 ~ 1 Kpa... 200kPa | Pressure Type: | Differential Pressure And Gauge Pressure Type |
|---|---|---|---|
| Power Supply Voltage: | 2.5V ~ 5.5V | Current Consumption: | 5uA(one Measurement) |
| Sleep Current: | < 100 Na (25 ° C) | ||
| Highlight: | 200kPa Pressure Sensor Module,100 kpa Pressure Sensor Module |
||
Product Description:

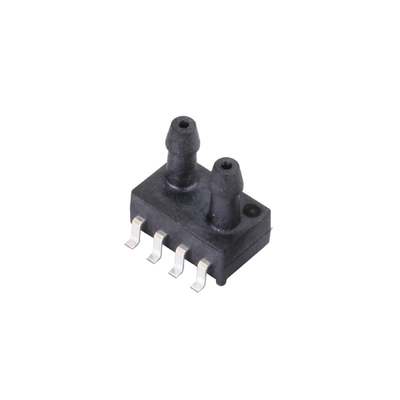

XGZP6897D - 100 kpa... 0 ~ 1 Kpa... 200kPa Pressure Sensor Module Is Used For Non-corrosive Gases
Features:
XGZP6897D pressure module is a pressure sensor suitable for differential pressure measurement, its core part is a MEMS technology processing
The silicon piezoresistive pressure sensitive chip, the positive and negative sides of the pressure sensitive chip through the pressure nozzle to feel different pressure, so as to form a pressure difference, produced
A voltage signal proportional to the pressure difference. The built-in circuit chip digitally compensates the offset, sensitivity, temperature drift and nonlinearity of the sensor to provide
The voltage is used as a reference to generate a calibrated, temperature compensated digital voltage signal.
XGZP6897D pressure module size is small, easy to install, can be calibrated according to user requirements output signal, widely used in medical care, industrial testing,
Sports and fitness equipment and other fields.
Application field
· Ventilator, CPAP, spirometer, gas flow measurement, sleep apnea treatment and other medical fields
· Air flow detection, heating, ventilation and air conditioning, pneumatic equipment, flowmeter, liquid level detection, pressure switch and other industrial fields
· Bioscience, small household appliances, consumer electronics, sports and fitness equipment, fire fighting equipment, Internet of Things and other fields
Specifications:
| Operating temperature range | -30℃ ~ 85℃ |
| Temperature accuracy | ±0.5℃@25℃ |
| Application | Suitable for non-corrosive gas |
| Features | I2C signal output, wide temperature compensation |
| Accuracy | ± 2%span |
