Product Details:
|
| Input Resistance: | 5.5 K 7.5 K 11.5 K Ohm | Output Resistance: | 1.5 K 2.5 K 3.0 K Ohm |
|---|---|---|---|
| 0 To 1: | 14.7 16.7 18.7 MV | 0 To 5: | 47 50 53 MV |
| 0 To 15: | 96 100 104 MV | ||
| Highlight: | 20PCSMT SMT Microstructure Pressure Sensors,SMT Microstructure Pressure Sensors |
||
Product Description:

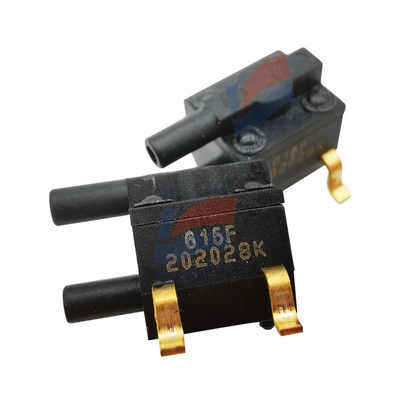

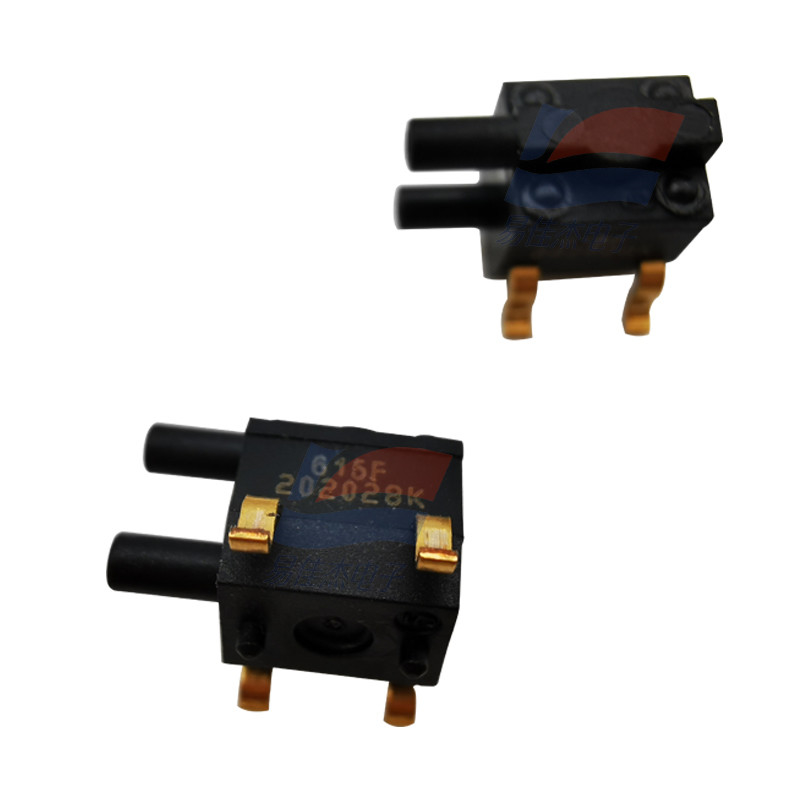

26PC15SMT 20PCSMT Series SMT Microstructure Pressure Sensors
Features:
The 26PCSMT(Surface Mount Technology) family of pressure sensors is a small, low cost, high value pressure measurement solution for
PCB board mounting, inherited the 26PC pressure sensor long established characteristics of reliability and high precision, 26PCSMT through the surface mount
Installation technology, reduce the size of the external, but also reduce the size of the PCB board, at the same time, reduce the installation cost, eliminate the second operation.
The sensor integrates Wheatstone bridge construction, silicon piezoresistive technology, linear proportional output, simple design, easy installation, and flexible.
This sensor is suitable for many industrial applications including medical devices.
Specifications:
| Storage temperature | -55˚C to 100˚C (-67˚F to 212˚F) |
| Working temperature | -40˚C to 85˚C (-40˚F to 185˚F) |
| Compensation temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Excitation Voltage | 10.0 16.0 Vdc |
| Response Time | 1.0 ms |
