Product Details:
|
| Excitation Voltage: | 10.0 16.0 Vdc | Response Time: | 1.0 Ms |
|---|---|---|---|
| Input Resistance: | 5.5 K 7.5 K 11.5 K Ohm | Output Resistance: | 1.5 K 2.5 K 3.0 K Ohm |
| 0 To 1: | -2.0 0 +2.0 MV | ||
| Highlight: | 26PC05SMT Silicon Pressure Sensors,SMT Micro Silicon Pressure Sensors |
||
Product Description:

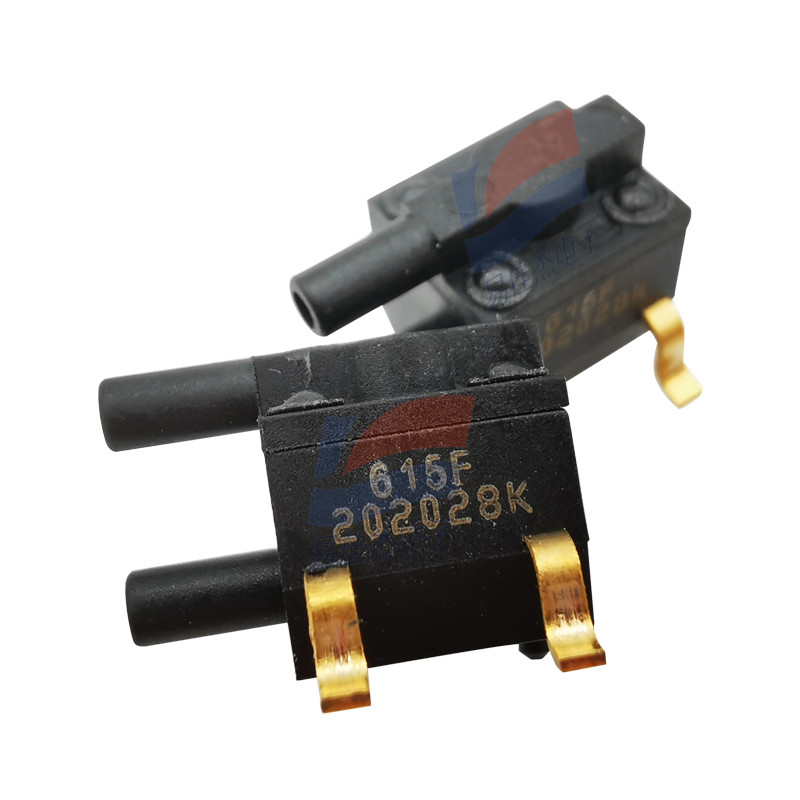

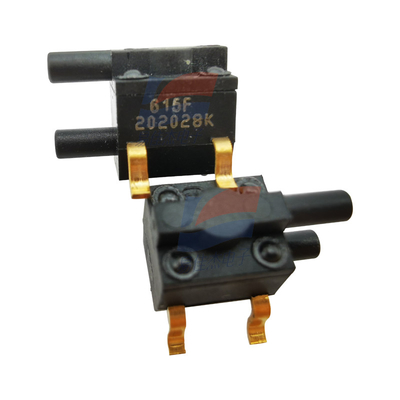

26PC05SMT 26PC Series Micro Silicon Pressure Sensors
Features:
Alignment pins for position
accuracy
· Small package size (less
than one half the size of the
26PC) and compact surface
mount profile
· 3,18 mm [0.125 in] diameter
pick-up feature for use in
pick and place machines
· Max peak reflow
temperature of 260 °C
[500 °F]
· Gage, vacuum gage,
differential, wet/wet
differential sensing
available in one package
· True wet/wet differential
sensing
· Proven elastomeric
interconnections of the
20PC family
· Temperature compensation
· End point calibration
· Sensor consists of only five
components
· Elastomeric construction
· Wide operating temperature
range of -40 °C to 85 °C
[-40 °F to 185 °F]
TYPICAL APPLICATIONS
· Blood glucose monitors
· Oxygen conservers
· Infusion pumps
· Ventilators
· CPAP (Continuous Positive
Airway Pressure)
equipment
· Residential fuel cells.
Specifications:
| Storage temperature | -55˚C to 100˚C (-67˚F to 212˚F) |
| Working temperature | -40˚C to 85˚C (-40˚F to 185˚F) |
| Compensation temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Shock | Qualification tested to 150 g |
| Weight | 0.5 grams [0.0176 oz] |
