Product Details:
|
| Packaging: | SIP - 4 | Category: | Sensor, Transmitter Pressure Sensor, Transmitter |
|---|---|---|---|
| Manufacturer: | Sensing And Productivity Solutions | Series: | 26 PCS |
| Application: | Panel Mounted | ||
| Highlight: | 20PC Pressure Sensor Board Interface,20PC Force Sensor Board Interface,26PCDFG6G Pressure Sensor |
||
Product Description:

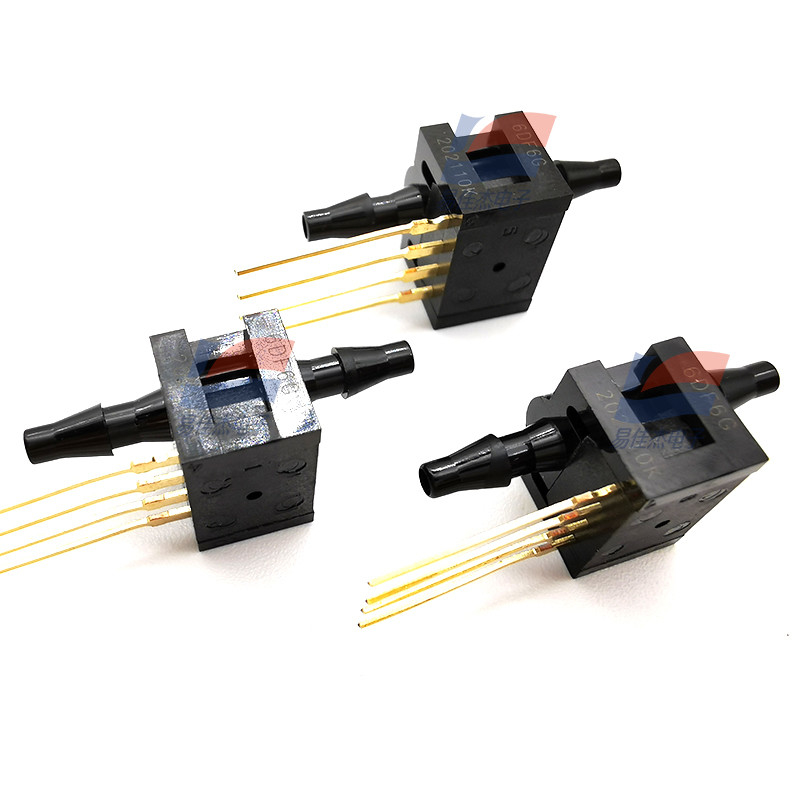

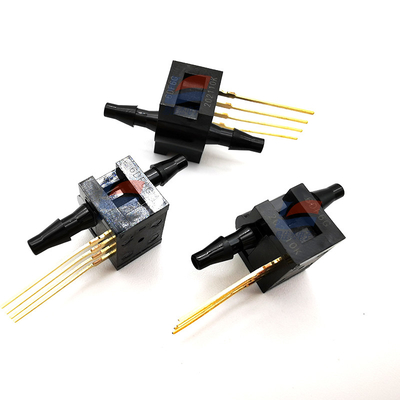

26PCDFG6G Force Sensor Board Interface Pressure Sensor 20PC
Features:
The patented conductive seal elastic connection system eliminates the traditional wire bonding and ribbon connection, increasing the measurement of the medium concurrently
Capacitive.
● The patented Snap-together structure leads to a variety of measurement hole forms
● Lowest price pressure sensor with temperature compensation and calibration in small package
● Different pin options (1x4 or 2X2)
● Can measure negative pressure and positive pressure
● Laser etching resistance to ensure excellent device consistency
Voltage - Power supply: 2.5V ~ 16V
Port size: male - 0.14" (3.56mm) tube
Port style: with barb
Characteristics: Temperature compensation
End style: PC pin
Maximum pressure: ±60PSI (±413.69kPa)
Operating temperature: -40°C ~ 85°C
Package/shell: 4-SIP module
Specifications:
| Type of pressure | compound |
| Working pressure | ±30PSI (± 206.84kpa) |
| Output type | Wheatstone bridge |
| Output | 0mV ~ 100mV (10V) |
| Accuracy | + / - 0.2% |
