Product Details:
|
| Port Type: | Single Axial Barbless | Resolution: | - |
|---|---|---|---|
| Package/case: | DIP-6 | Minimum Operating Temperature: | -45 C |
| Maximum Operating Temperature: | + 125 C | Series: | 40 PC |
| Highlight: | Medical Treatment Bed Pressure Sensor,Oxygen Concentrator Pressure Sensor |
||
Product Description:

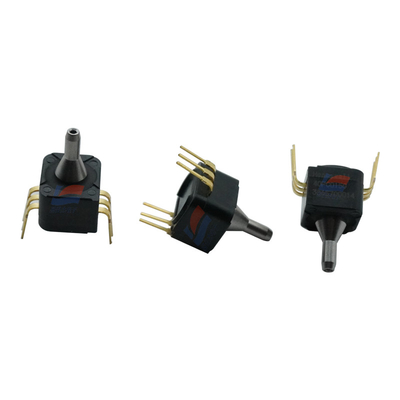

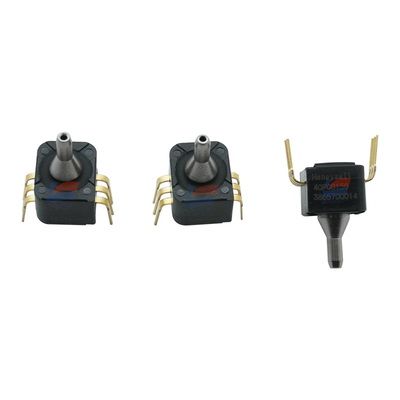

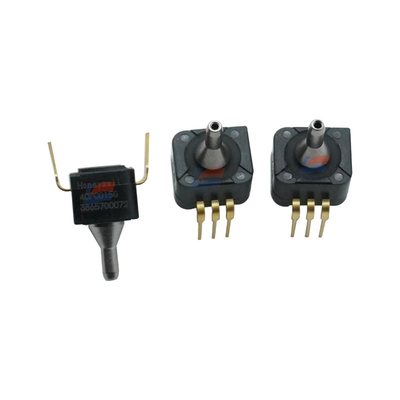

40PC015G2A Board Machine Interface Pressure Sensor For Medical Treatment Bed Oxygen Concentrator And Other Instruments
Features:
The new economy 40PC product is a small volume amplified pressure sensor from HoneywelI/MicroSwitch division. Fully calibrated and temperature compensated, it is a robust, wide temperature applicable sensor in pressure products. In addition, the 40PC is compatible with a wide range of media, from dry air and water to coolant and motor oil. 40PC provides analog amplifier signal output, the sensor uses the original single silicon chip design, all temperature compensation, output zero/full scale calibration, amplification functions concentrated in a silicon chip. The 6-pin DIP design is suitable for conventional PCB installation, with three pins on one side of the sensor for power supply, grounding, and output, and three pins on the other side for holding. When the sensor pressure port is required to be level with the PCB, three retaining feet are available.
The characteristics of
● Small volume, with magnifying sensor
● Complete signal conditioning
● Operating temperature, -45~+125℃
● Silicon piezoresistive technology
● Single silicon chip design
● 6-pin DIP pins
● The design of pressure port is suitable for O-ring connection
● Excellent media compatibility
A typical use of
● Hospital treatment beds
Low breathing machine
● Oxygen concentrator
● Test equipment
● Blood pressure measurement
● Electronic brake system
● Oil level detection
● Liquefaction of transmission fluid
● Air conditioning system
● Fuel injection system
Specifications:
| Pressure type | Gauge |
| Working pressure | 0 psi to 15 psi |
| Accuracy | 0.2 % |
| Output type | Analog |
| Installation style | Through Hole |
| Operating power supply voltage | 5 V |
