Product Details:
|
| Pressure Reading Type: | Relative | Minimum Pressure Reading: | 0psi |
|---|---|---|---|
| Maximum Pressure Reading: | 150psi | Accuracy: | 0.8% |
| Output Type: | Zoom In | Medium Measurement: | Gas |
| Highlight: | Trigger Interface Electronic Brake System |
||
Product Description:

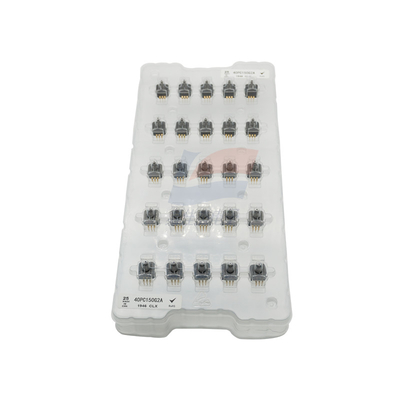

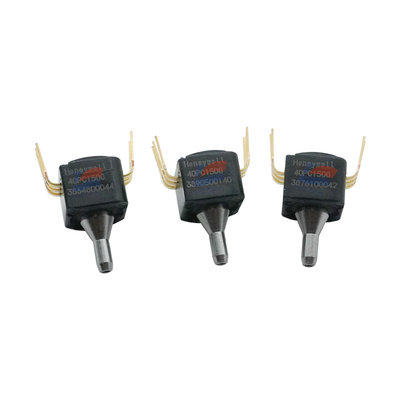

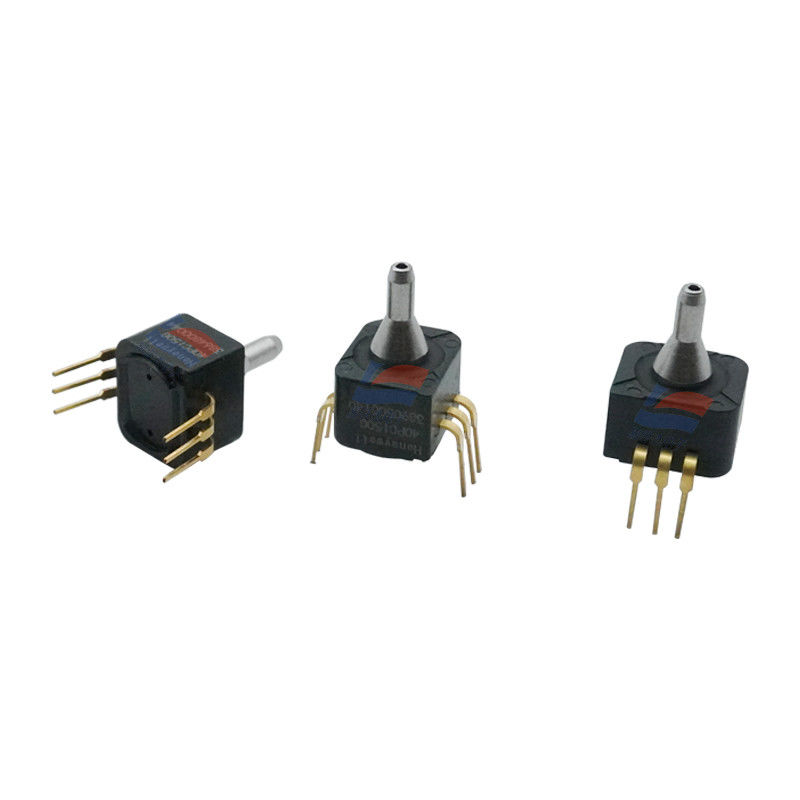

40PC150G2A Electronic Brake System For Trigger Interface Pressure Sensor 0psi-150psi
Features:
40PC series amplifier pressure sensor
Magnify the pressure gauge sensor
Small 6-pin DIL packages require minimum PCB space
Complete signal regulation monolithic circuit design
Silicon piezoelectric resistance measurement technology
Ports are designed for O-shaped interfaces
Excellent media compatibility
Accuracy of 0.2%
Medium: air, dry gas
Operating temperature -45°C → +125°C
note
Not suitable for direct connection to piping systems or pipes
Output range ±50mmHg 4.00VDC typical value
0 to 15 psi 4.00±0.11VDC
0 to 100 psi 4.00 + / - 0.09 VDC
0 to 150 psi 4.00 + / - 0.07 VDC
0 to 250 psi 4.00 + / - 0.07 VDC
0 to 500 psi 4.00 + / - 0.07 VDC
Specifications:
| Analog output | 0.5mA |
| Electrical connection | Printed circuit board |
| Response time | 1 ms |
| Power supply voltage | 5 V DC |
| Minimum operating temperature | -45°C |
| Maximum operating temperature | +125°C |
