Product Details:
|
| Operating Power Supply Current: | 2.5 MA | Port Size: | 2.31 Mm |
|---|---|---|---|
| Product Type: | Pressure Sensors | Subcategory: | Sensors |
| Supply Voltage - Max: | 5.25V | Supply Voltage - Min: | 4.75V |
| Unit Weight: | 9.466g | ||
| Highlight: | ASDXRRX005PGAA5 Differential Pressure Sensor,5.0 Psi Differential Pressure Sensor,Machine Interfaces Differential Pressure Sensor |
||
Product Description:

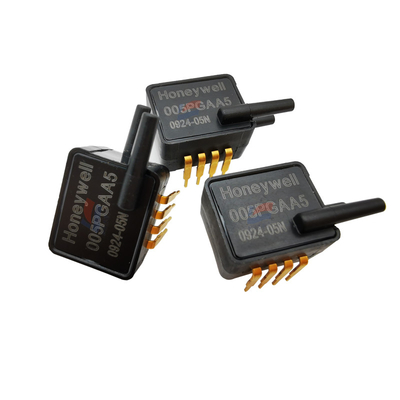

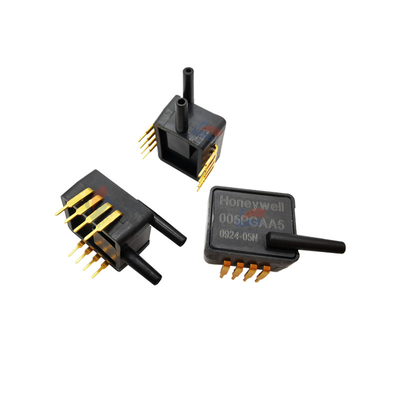

ASDXRRX005PGAA5 Differential 0 psi to 5.0 Psi Of Pressure Sensor Between Board And Machine Interfaces
Features:
The ASDX Series is a Silicon Pressure Sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span and temperature range. The ASDX is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz. The standard ASDX is calibrated over the temperature range of 0 °C to 85 °C [32 °F to 185 °F]. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors are available to measure absolute, differential and gage pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Differential versions allow application of pressure to either side of the sensing diaphragm. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. The ASDX Series sensors are intended for use with non[1]corrosive, non-ionic working fluids such as air and dry gases. They are designed and manufactured according to standards in ISO 9001.
Ratiometric 12-bit analog output
Precision ASIC conditioning and temperature compensated over 0 °C to 85 °C [32 °F to 185 °F] temperature range
Low operating voltage
Absolute, differential and gage types
Pressure ranges from 10 inches H20 to 100 psi
Standard calibrations in inches H20, cm H20, psi, mbar, bar, kPa
Total error band of ±2.0% of full scale span maximum
RoHS compliant POTENTIAL APPLICATIONS
Flow calibrators
Ventilation and air flow monitors
Gas flow instrumentation
Sleep apnea monitoring and therapy equipment
Barometry
Pneumatic controls
HVAC
Specifications:
| Operating power supply voltage | 5 V |
| Port type | Dual Radial Barbless |
| Package/case | DIP-8 |
| Minimum operating temperature | -20 C |
| Maximum operating temperature | + 105 C |
| Operating power supply current | 2.5 mA |
| Port size | 2.31 mm |
