SDP1108-R Industrial Pressure Sensors Low Differential Pressure Sensor

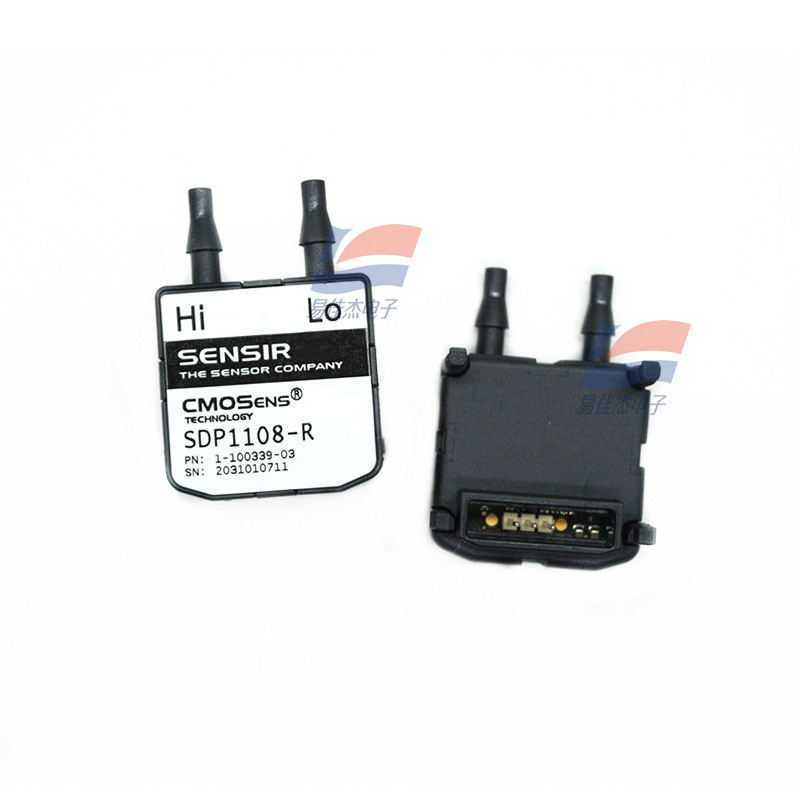

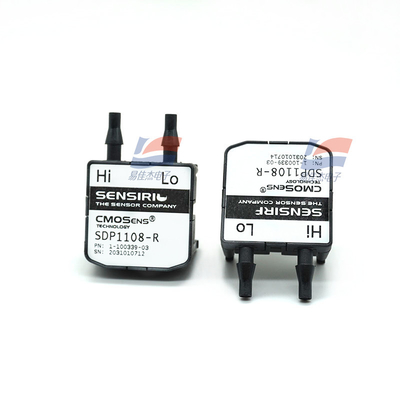

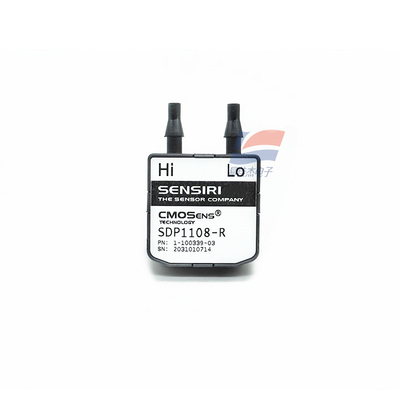

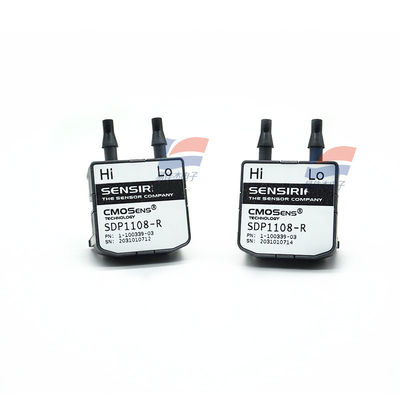

Large Image : SDP1108-R Industrial Pressure Sensors Low Differential Pressure Sensor

Product Details:

Place of Origin:	China
Model Number:	SDP1108-R

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Packing
Delivery Time:	5-8workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000

Contact Now

SDP1108-R Industrial Pressure Sensors Low Differential Pressure Sensor

Description

Product Category:

Industrial Pressure Sensors

Product:

Pressure Switches

Working Pressure:

0 Pa To 500 Pa

Pressure Type:

Differential

Highlight:

SDP1108-R Industrial Pressure Sensors

500Pa Industrial Pressure Sensors

SMT Low Differential Pressure Sensor

SDP1108-R Industrial Pressure Sensors Differential Type

Datasheet SDP1108-R
Low Differential Pressure Sensor
with fast response time
− For medical ventilators (ICU and home care)
− High sensitivity below 10 Pa to measure small volume flow (neonatal)
− Fast response time for efficient trigger function
− Unsurpassed performance thanks to CMOSens® technology
− Offset and hysteresis free
− Fully calibrated and temperature compensated
− Not sensitive to the mounting orientation and vibrations

Datasheet:

Accuracy	1 %
Length	30.5 mm
Output Type	Analog
Port size	3.4 mm
Installation style	SMD/SMT
Output voltage	0.25 V to 4 V
Operating supply voltage	5 V
IP rating	IP20
Maximum operating temperature	+ 60 C
Minimum operating temperature	- 10 C
Operating supply current	5.1 mA
Supply Voltage - Maximum	5.25 V
Supply Voltage - Min	4.75 V
Unit weight	31.751 g

SDP1108-R Industrial Pressure Sensors Low Differential Pressure Sensor 0
