Product Details:
|
| Pressure Type: | Gauge | Working Pressure: | 0.57 Psi |
|---|---|---|---|
| Accuracy: | 1.5 % | Output Type: | Analog |
| Highlight: | MPXV5004GC6U Board Mount Pressure Sensor,Single Axial Board Mount Pressure Sensor,Barbless Board Mount Pressure Sensor |
||

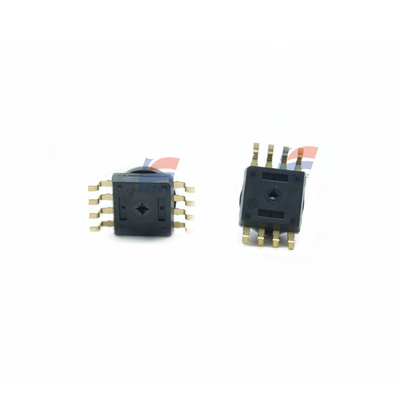

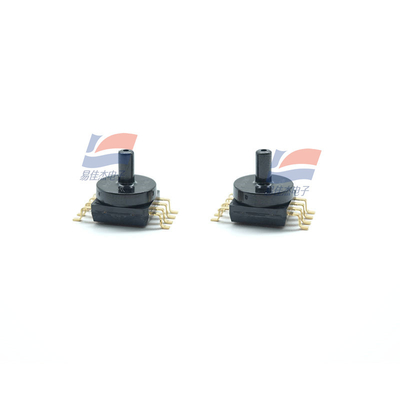

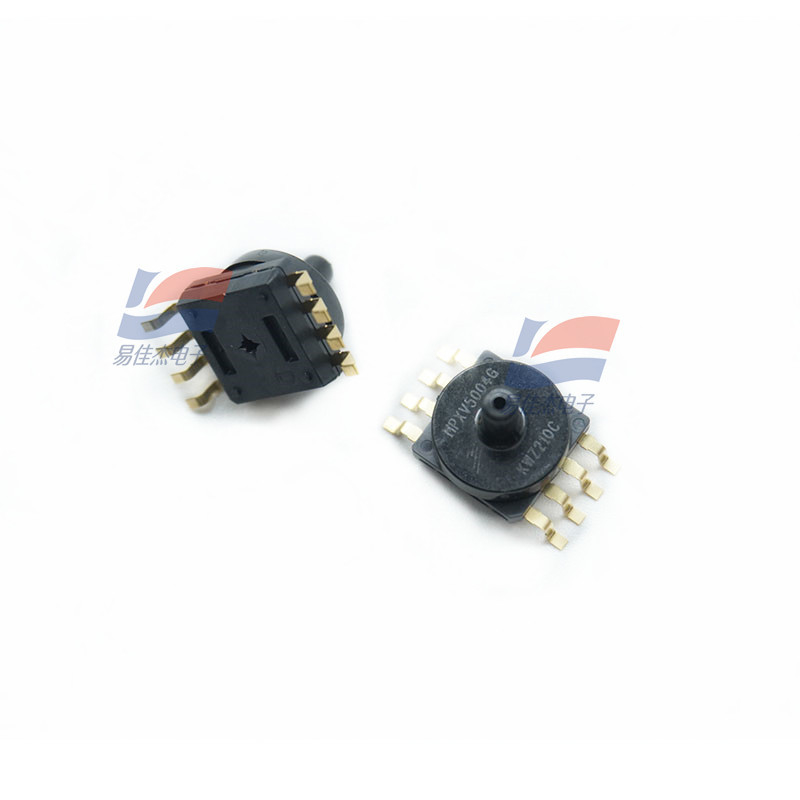

MPXV5004GC6U Board Mount Pressure Sensor Single Axial Barbless
MPxx5004 series piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but
particularly those employing a microcontroller or microprocessor with A/D inputs.
This sensor combines a highly sensitive implanted strain gauge with advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
Applications
• Washing machine water level
• Ideally suited for microprocessor or microcontroller-based systems
• Appliance liquid level and pressure measurement
• Respiratory equipment
Datasheet:
| Installation style | SMD/SMT |
| Working power supply voltage | 5 V |
| Package/Case | SOIC-8 |
| Minimum working temperature | 0 C |
| Maximum working temperature | + 85 C |
| Working power supply current | 10 mA |
| Output voltage | 4.9V |
| Port size | 3.17mm |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Unit weight | 1.306 g |
