Product Details:
|
| Pressure Type: | Vacuum, Gauge, Differential | Working Pressure: | 1 Psi |
|---|---|---|---|
| Accuracy: | 0.15 % | Output Type: | Analog |
| Highlight: | 24PCAFA6D Electronic Pressure Sensor,1psi Electronic Pressure Sensor,24PCAFA6D |
||

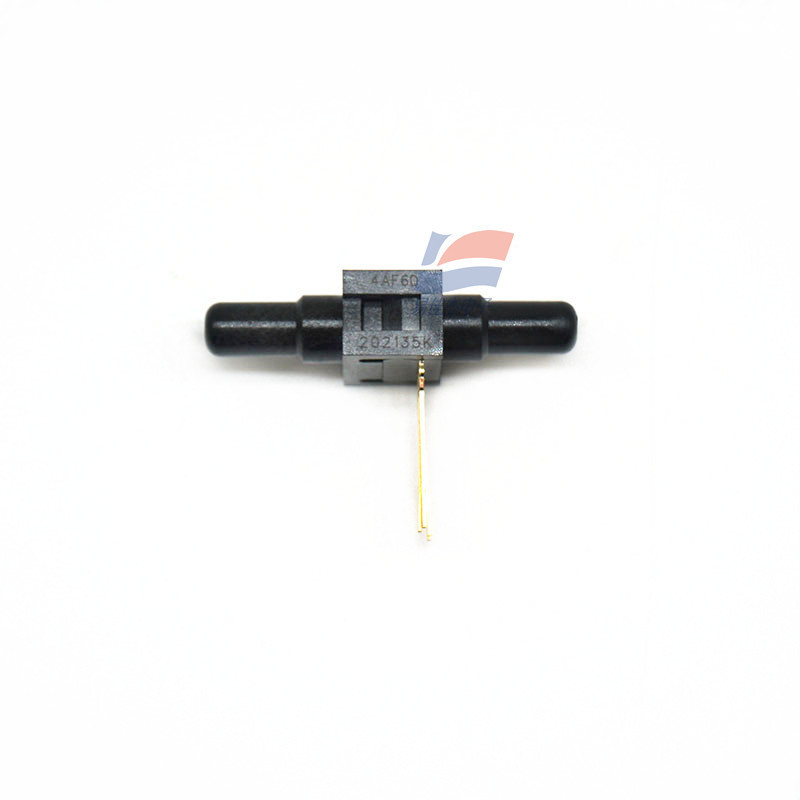

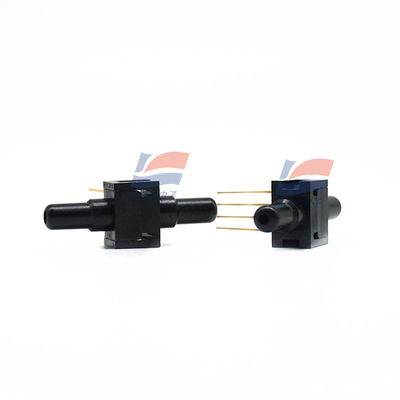

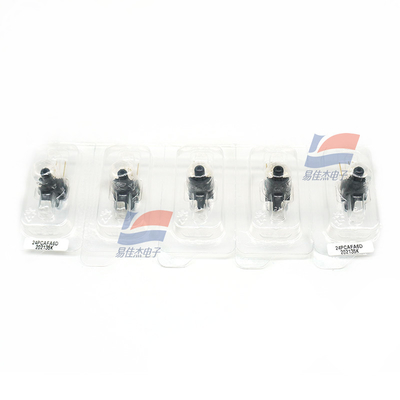

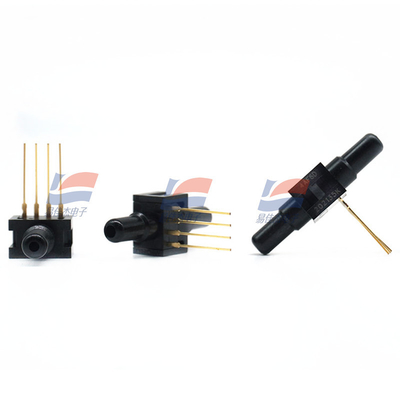

24PCAFA6D Electronic Pressure Sensor Board Mount Vacuum Through Hole
24PCAFA6D Pressure Sensors Board Mount Vacuum Through Hole Style
The 24PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
Datasheet:
| Working power supply voltage | 10 V |
| Port Type | Dual Radial Barbless |
| Package / Box | SIP-4 |
| Minimum working temperature | - 40 C |
| Maximum working temperature | + 85 C |
| Port size | 0.25 in |
| Product Type | Pressure Sensors |
| Unit weight | 2.500 g |
