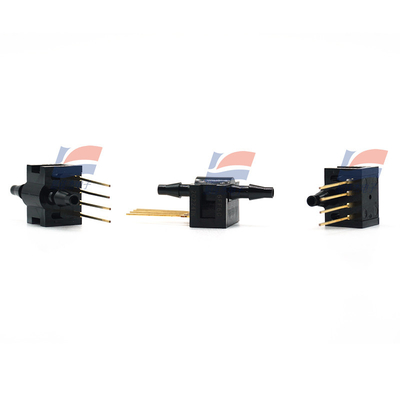

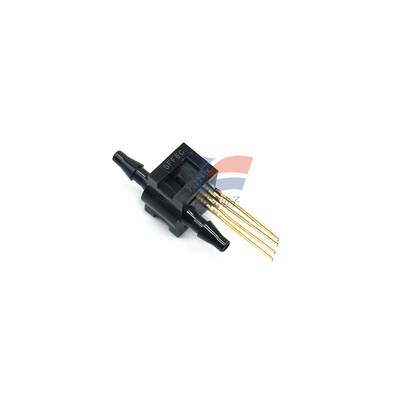

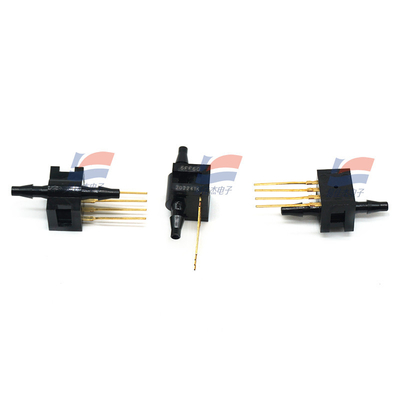

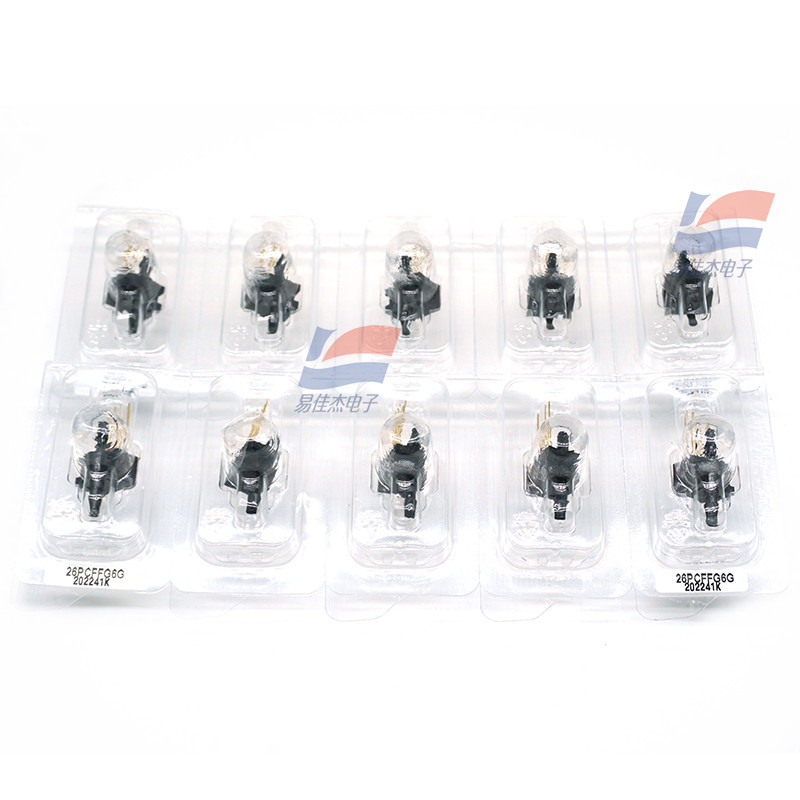

26PCFFG6G Board Mount Gauge Pressure Sensor Miniature Low Pressure Vacuum

26PCFFG6G Board Mount Gauge Pressure Sensor Miniature Low Pressure Vacuum

The 26PC Series Miniature Low Pressure Flow-Through Sensors feature proven sensing technology that uses a specialized
piezoresistive micromachined sensing element to offer high performance, reliability, and accuracy.
Each sensor contains four active piezoresistive elements in a Wheatstone bridge configuration. When pressure is applied,
the resistance changes and provides an output signal in mV proportional to the input pressure.
The low power, compensated, unamplified Wheatstone bridge circuit design offers 1 psi through 100 psi sensing ranges
in a variety of pressure port types and termination configurations. The mV output is available in both negative and positive
voltage.

Datasheet:
