Product Details:
|
| Package: | TO-5 | Photosensitive Area: | 3.61 × 3.61 |
|---|---|---|---|
| Shunt Resistance: | Rsh VR=10 MV | Noise Equivalent Power: | NEP VR=0 V, λ=λp |
| Highlight: | 254nm Infrared Photoelectric Sensor,S12742-254 Infrared Photoelectric Sensor,S12742-254 Interference Filter |
||

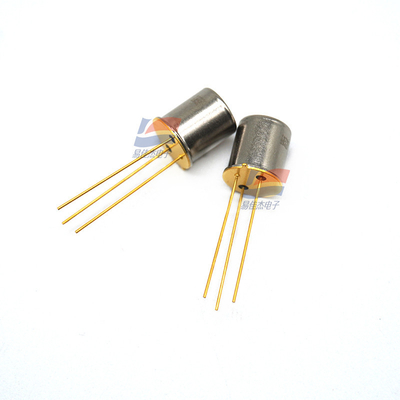

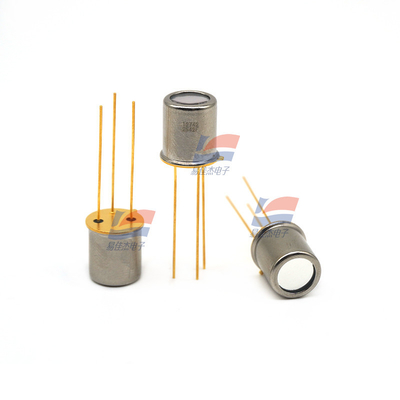

S12742-254 Silicon Photodiode Photodiode With Filter For Monochromatic Light 254 nm Detection
Band Interference Filter Suitable For Monochromatic Light 254nm Detection Of Silicon Photodiode S12742-254
Features:
Photodiode with interference filter for
monochromatic light (254 nm) detection
Si photodiode
www.hamamatsu.com 1
The S12742-254 uses an interference filter for its window and is sensitive only to monochromatic light. The spectral
response width is extremely narrow at 10 nm (FWHM), allowing accurate photometry without any effects of stray light. The
center wavelength is 254 nm typ. The S12742-254 can be customized to support other peak sensitivity wavelengths such as
340 nm, 560 nm, and 650 nm.
Analytical instruments
UV monitors (mercury lamp monitor, etc.)
Features Applications
Specifications:
| Reverse voltage | VR max |
| Operating temperature | Topr |
| Storage temperature | Tstg |
| Center wavelength | CWL |
| Photosensitivity | λ=254 nm |
