Product Details:
|
Storage Temperature: | -40~+90℃ | Operating Temperature: | -30~+85℃ |
---|---|---|---|
Forward Current: | 1mA | Light Source Power: | 0.1u~100mW/cm²(UVC Lamp) |
Highlight: | L9657 03 Transmitter Tube,Red UV Transmitter Tube,L9657 03 Single Tube Transmitter |

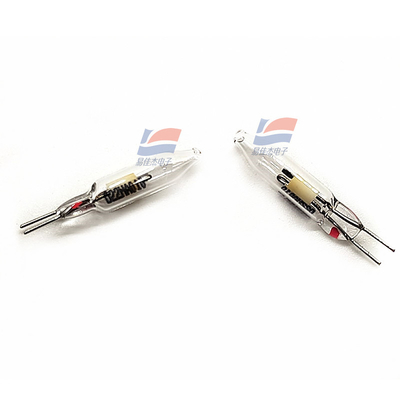

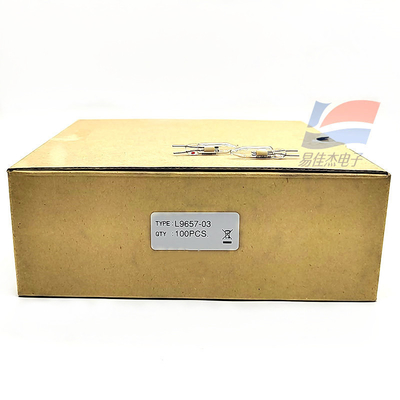

L9657-03 Red UV Lamp Sensor Transmitter Tube Imported With Original Package
Features:
1) Aluminum gallium nitride as the base material
2) Schottky photodiode
3) Photovoltaic mode operation
4) Good day blindness
1) Storage temperature: -40~+90℃
2) Operating temperature: -30~+85℃
3) Reverse voltage: 3V (max)
4) Forward current: 1mA (max)
5) Light source power: 0.1u~100mW/cm²(UVC lamp)
6) Welding temperature: 260℃ (max)
7) Spectral detection range: 220~280nm (25℃, 10% of R)
Specifications:
Welding temperature | 260℃ |
Light source power | 0.1u~100mW/cm² |
Spectral detection range | 25℃, 10% of R |
Reverse voltage | 3V |
