NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil

I'm Online Chat Now

NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil

NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil
NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil

Large Image :  NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil

Product Details:
Brand Name: YJJ
Model Number: NPI-15A-353AH
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: Tubes of
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1501/pcs/pre

NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil

Description
Accuracy: 0.1% Series: NPI
Supply Voltage: 10V Linearity: 0.1% FSO (typical Value)
Thermal Accuracy: 0.2% FSO
Highlight:

35Mpa Absolute Pressure

,

NPI-15A-353AH Absolute Pressure Sensor

,

35Mpa Oil Pressure Sensor

NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil



NPI-15A-353AH Ceramic Base 35Mpa Absolute Pressure Filled Oil Pressure Sensor



Features:

NovaSensor NPI-15 series of current-driven, dielectric isolated high-voltage sensors are designed to operate in harsh environments with silicon sensor sensitivity, linearity and hysteresis. They use advanced IsoSensor technology to provide high performance for OEM users. The piezoresistive sensor chip is installed in a cylindrical cavity filled with fluid and is isolated from the measured medium by a stainless steel diaphragm and body. Like all NovaSensor silicon sensors, the NPI-15 series uses SenStable® processing technology to provide stability.



To compensate for the temperature effect a network of resistors is provided on a hybrid ceramic substrate. The IsoSensor design minimizes temperature errors to provide an offset error of 0.75% FSO over the compensation range of 32°F to 158°F (0°C to 70°C).



The NovaSensor NPI-15VC series voltage compensation, dielectric isolation high voltage sensor has the performance of current compensation sensor, and the use of voltage power supply is very convenient. Voltage compensation allows the sensor to be connected directly to the power supply, eliminating the additional components needed to build a constant current source. These sensors are field interchangeable with calibrated 100 mV ± 1% FSO.



Like all NPI dielectric isolation sensors, they are designed to operate in harsh environments, but have silicon sensor sensitivity, linearity, and hysteresis. The piezoresistive sensor chip is installed in a cylindrical cavity filled with fluid and is isolated from the measured medium by a stainless steel diaphragm and body. The NPI series uses SenStable® processing technology to provide output stability.



Specifications:

Pressure type Absolute pressure A
Working pressure 35MPa
Output type Analog voltage output
Output voltage 100mV

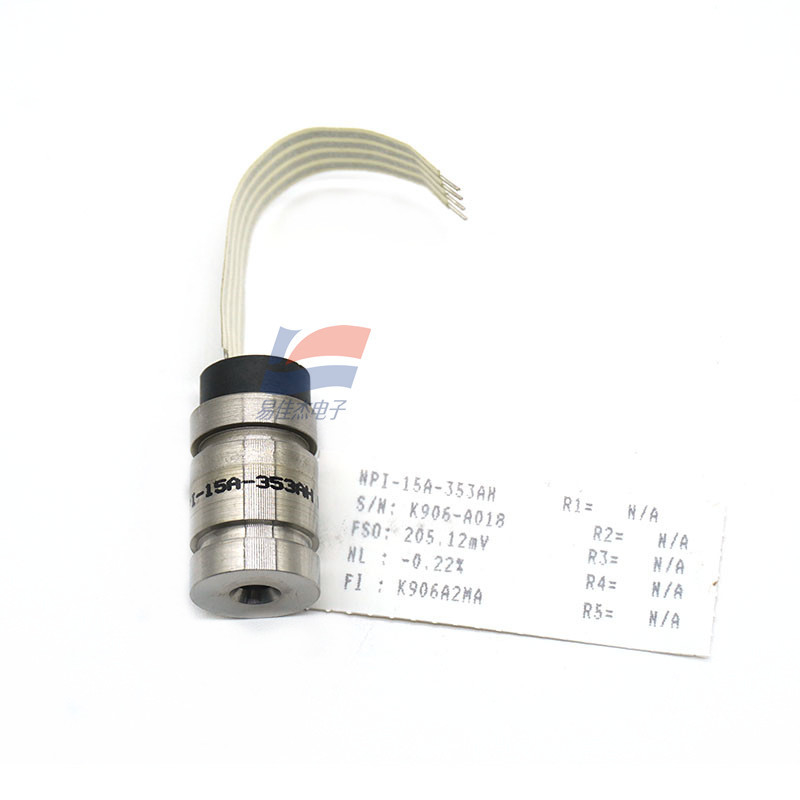

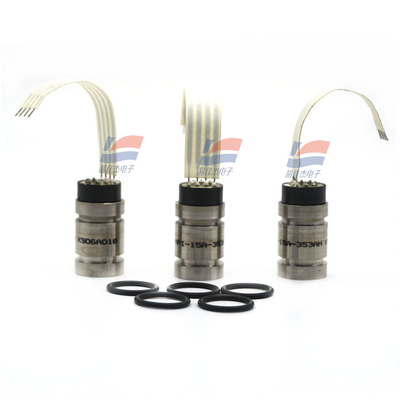

NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil 0NPI-15A-353AH 35Mpa Absolute Pressure Ceramic Base For Filled Oil 1
