Product Details:
|
| Receiving Surface Size Is: | 2.4 × 2.4mm | Effective Photosensitive Area: | 5.7 Mm2 |
|---|---|---|---|
| Maximum Reverse Voltage Is: | 30 V | Operating Temperature: | -20 ~ +60 ℃ |
| Highlight: | S12915 33R Silicon Photodiode Sensor,30V Silicon Photodiode Sensor,S12915 33R silicon photodetector |
||

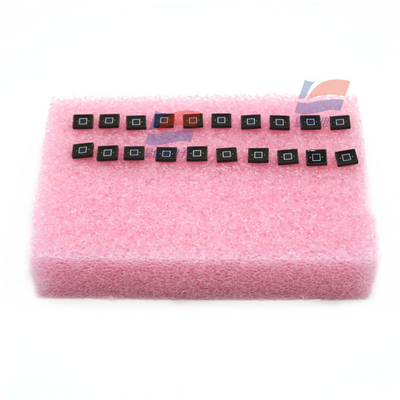

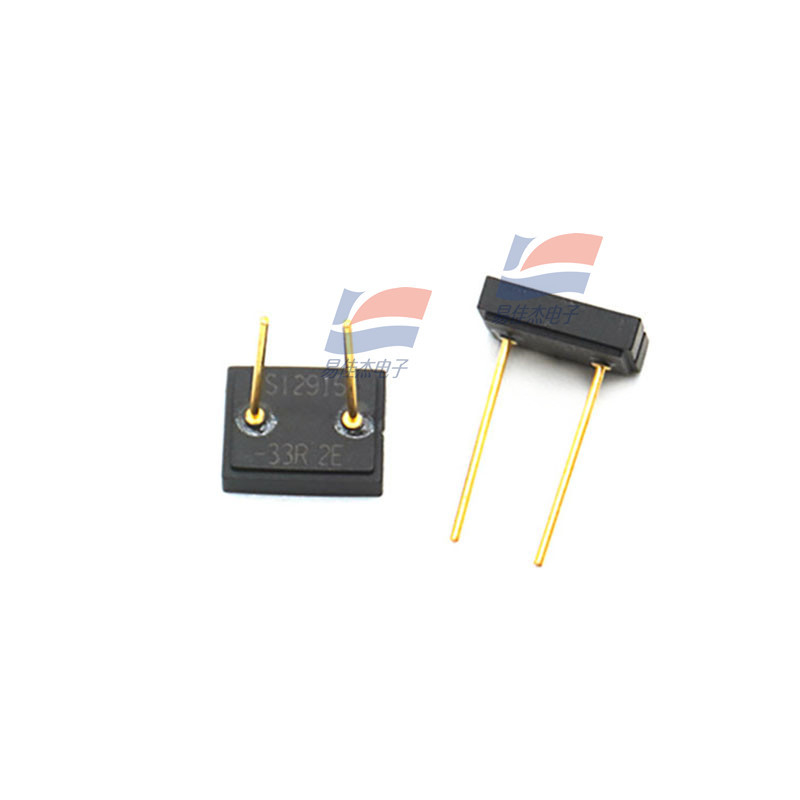

S12915-33R Silicon Photodiode Sensor For General Photometer Low Dark Current
Universal photometry for visible to infrared
The S12915 series has high sensitivity in the visible to near infrared range.
It has higher sensitivity than the S2387 series and can be used in high humidity environments.
Features
- High sensitivity in the visible to infrared range
- Low dark current
- High linearity
Specifications:
| Window material | Plastic potting |
| Package | 6×7.6mm |
| Photosensitive area size | 2.4 × 2.4mm |
| Effective photosensitive area | 5.7 |
| Operating temperature | -20～+60℃ |
| Storage temperature | -20～+80℃ |
| Spectral response range | 340～1100nm |
| Peak sensitivity wavelength | 960nm |
