Product Details:
|
| Voltage-source: | 4.75 V To 5.25 V | Operating Temperature: | To 40 ° C To 125 ° C |
|---|---|---|---|
| Accuracy: | Plus Or Minus 2.5% | Output: | 0.2 V To 4.7 V |
| Highlight: | MPX5500DP Electronic Pressure Sensor,4.75V Electronic Pressure Sensor,MPX5500DP Integrated Silicon Pressure Sensor |
||

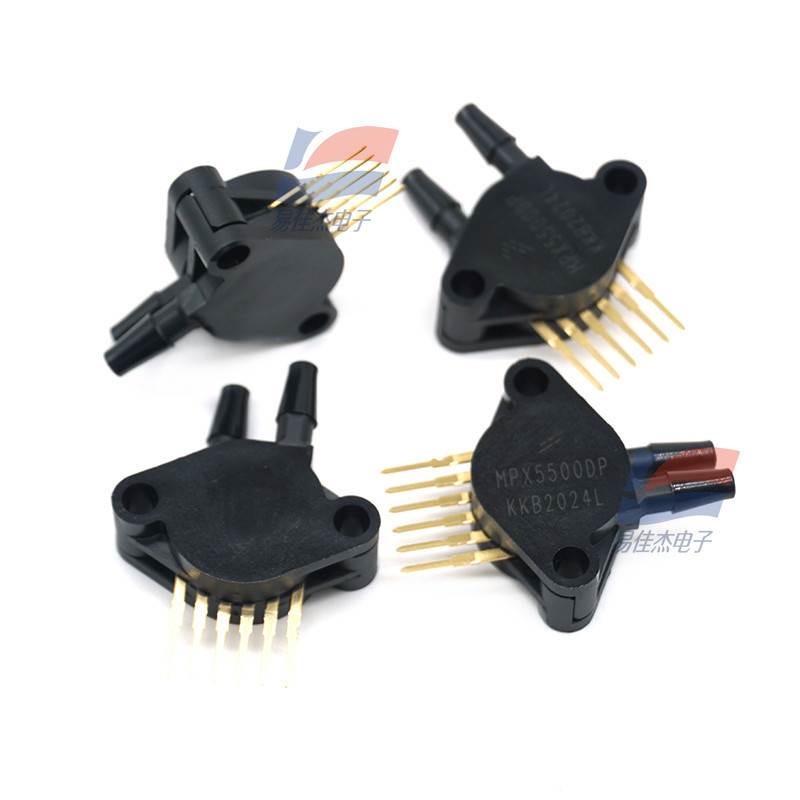

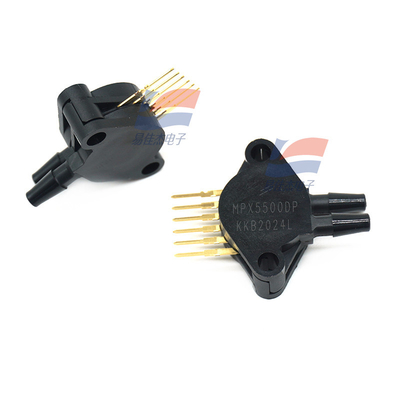

Integrated Silicon MPX5500DP Electronic Pressure Sensor 4.75V To 5.25V
Integrated Silicon Pressure Sensor MPX5500DP
Features:
Integrated silicon pressure sensor on chip for signal regulation, temperature compensation and calibration
The MPX5500 series piezoresistive sensor is a monolithic state-of-the-art
Silicon pressure sensors are designed for a wide range of applications, but are special
Those that use A microcontroller or microprocessor with A/D input. this
Patented, single-element sensors combine advanced micromachining technology
Technology, thin film metallization, bipolar treatment to provide accuracy,
The high level analog output signal is proportional to the pressure applied.
characteristic
2.5% maximum error exceeding 0° to 85°C
Ideal for microcontroller or microprocessor-based systems
Patented silicon strain gauge for shear stress
Durable epoxy Unibody elements
Available in differential and specification configurations
Specifications:
| Output type | Analog voltage |
| characteristic | Temperature compensation |
| Pressure type | difference |
| Working pressure | 72.52PSI (500kPa) |
| Maximum pressure | 406.11PSI (2800kPa) |
