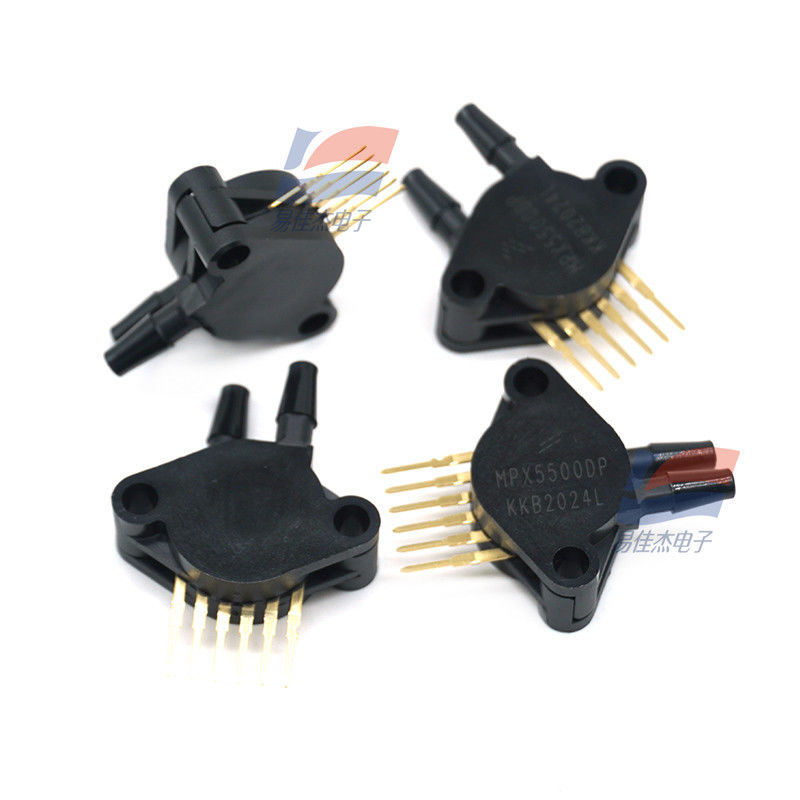

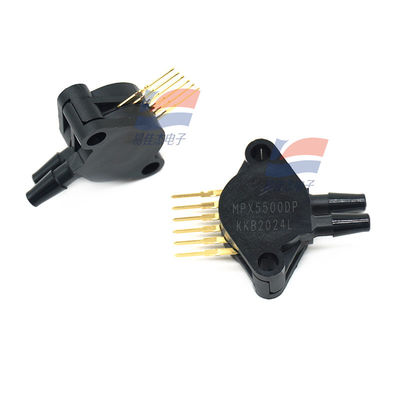

MPX5500DP Board Mount Pressure Sensors Differential Dual Axial Barbed

MPX5500DP Board Mount Pressure Sensors Differential Dual Axial Barbed

Features:

Integrated silicon pressure sensor on chip for signal regulation, temperature compensation and calibration

The MPX5500 series piezoresistive sensor is a monolithic state-of-the-art

Silicon pressure sensors are designed for a wide range of applications, but are special

Those that use A microcontroller or microprocessor with A/D input. this

Patented, single-element sensors combine advanced micromachining technology

Technology, thin film metallization, bipolar treatment to provide accuracy,

The high level analog output signal is proportional to the pressure applied.

characteristic

2.5% maximum error exceeding 0° to 85°C

Ideal for microcontroller or microprocessor-based systems

Patented silicon strain gauge for shear stress

Durable epoxy Unibody elements

Available in differential and specification configurations

Specifications:
