Product Details:
|
| Maximum Supply Voltage: | 6V | Length: | 1.2 Mm |
|---|---|---|---|
| Width: | 7.9 Mm | Height: | 1.2 Mm |
| Highlight: | MPXV7007DP Electronic Pressure Sensor,7Kpa Electronic Pressure Sensor,MPXV7007DP Vacuum Pressure Sensor |
||

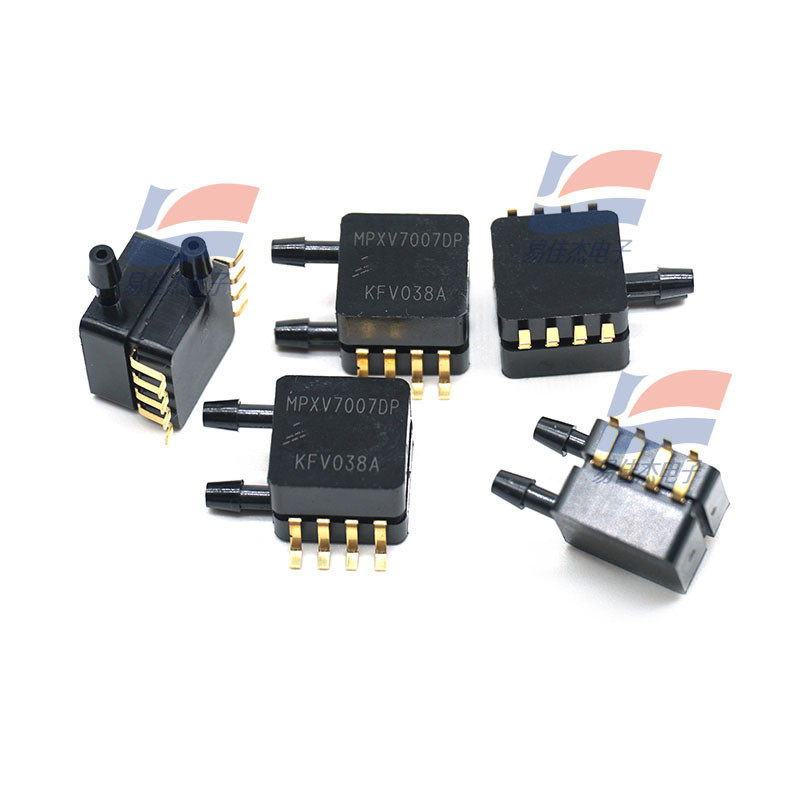

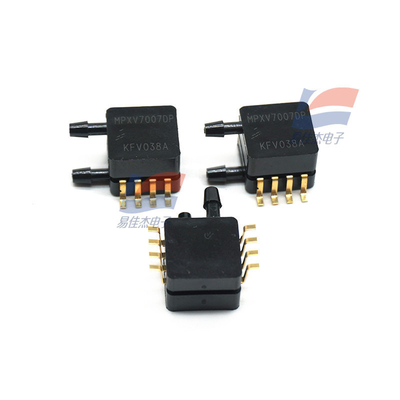

MPXV7007DP Electronic Pressure Sensor Negative -7Kpa to +7Kpa Vacuum
MPXV7007DP Negative Pressure -7Kpa to +7Kpa Vacuum Pressure Sensor
Features:
MPXV7007 series piezoresistive sensor is a new type of single crystal silicon sensor, using a small shape package.The sensor has A wide range of applications, especially those using A microcontroller or microprocessor with A/D input.This patented modular sensor combines advanced micromechanical technology, thin film metallization, and bipolar processing to provide a high level analog output signal proportional to the applied pressure.
The MPXV7007 can measure both positive and negative pressure.In addition, it replaces the traditional 0V with a specific 2.5v offset, and this new series of sensors allows up to 7kPa per port to be measured for pressure as well as for vacuum detection (see transfer functions in the data manual for details).
1351 MPXV7007DP MPXV7007DP Trays
MPXV7007DPT1 Tape & Reel 1351 MPXV7007DP
482 a MPXV7007G MPXV7007GC6U Rails
MPXV7007GC6T1 Tape & Reel 482A MPXV7007G
1369 MPXV7007GP MPXV7007GP Trays
features
• the error rate between 0℃ and 85℃ is 5%
• for systems based on microprocessors or microcontrollers
• thermoplastic (PPS) surface mount package
• temperature compensation ranges from -40° to 125°C
• patented silicon shear strain gauge
• provide differential and gauge pressure configurations
• ideal for automotive and non-automotive applications
Specifications:
| The error rate between | 0℃ and 85℃ is 5% |
| Temperature compensation ranges from | -40° to 125°C |
| Minimum operating temperature | -50C-80C |
| Minimum supply voltage | 2.5V |
