ASDXRRX015PDAA5 Board Mount Pressure Sensors Ultra Low Pressure Analog Output

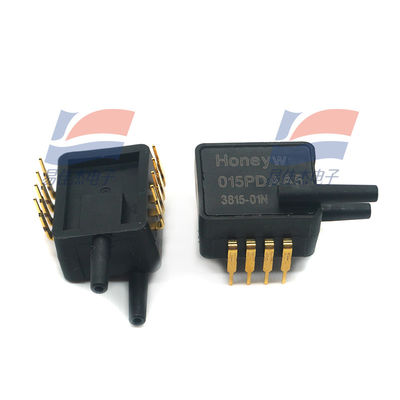

Large Image : ASDXRRX015PDAA5 Board Mount Pressure Sensors Ultra Low Pressure Analog Output

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	ASDXRRX015PDAA5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

ASDXRRX015PDAA5 Board Mount Pressure Sensors Ultra Low Pressure Analog Output

Description

Supply Voltage:	Minimum: 3V	Mounting Style:	Through Hole
Operating Supply Voltage:	5V	Output Type:	Analog
Package/Case:	DIP-8	Port Type:	Dual Radial Barbless
Minimum Operating Temperature:	-20 Degrees Celsius	Pressure Type:	Differential
Highlight:	DIP-8 Air Flow Sensor , Differential Pressure Air Flow Sensor , ASDXRRX015PDAA5

ASDXRRX015PDAA5 Board Mount Pressure Sensors Ultra Low Pressure Analog Output

FEATURES
*Ratiometric 12-bit analog output
*Precision ASlC conditioning and temperature compensated over 0 'C to 85 °C [32 'F to 185 °F] temperature range
*Low operating voltage
*Absolute, differential and gage types
*Pressure ranges from 10 inches H,0 to 100 psi
*Standard calibrations in inches H.0, cm H.0, psi, mbarbar. kPa
*Total error band of +2.0% of full scale span maximum

POTENTIAL APPLICATIONS
*Flow calibrators
*Ventilation and air flow monitors
*Gas flow instrumentation
*Sleep apnea monitoring and therapy equipment
*Barometry
*Pneumatic controls
*HVAC

Specification:

Pressure Type	Differential
Operating Pressure	15 psi
Accuracy	2 %
Output Type	Analog
Mounting Style	Through Hole
Operating Supply Voltage	5 V
Port Type	Dual Radial Barbless
Package / Case	DIP-8
Minimum Operating Temperature	- 20℃
Maximum Operating Temperature	+ 105℃
Supply Voltage - Max	6 V
Supply Voltage - Min	3 V

ASDXRRX015PDAA5 Board Mount Pressure Sensors Ultra Low Pressure Analog Output 0
