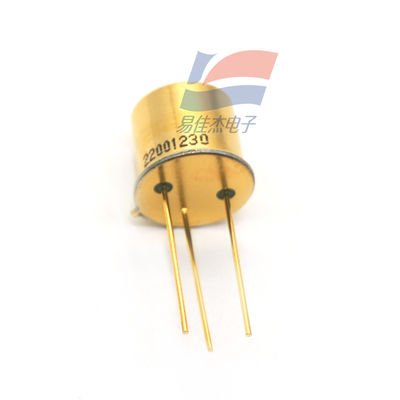

JSIR350-4-AL-R-D6 NDIR Gas Analysis Infrared Radiation Sources On T039

Large Image : JSIR350-4-AL-R-D6 NDIR Gas Analysis Infrared Radiation Sources On T039

Product Details:

Place of Origin:	Canada
Brand Name:	Laser
Model Number:	JSIR350-4-AL-R-D6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

JSIR350-4-AL-R-D6 NDIR Gas Analysis Infrared Radiation Sources On T039

Description

Operation Current 2:	Typ. 141mA	Mass:	~1G
Hot Resistant:	40±20Ω	Nominal Power Consumption:	0.65W
Operation Voltage 2:	Typ. 5.7V	Time Constant:	Typ. 15ms
Active Area Temperature 3,5:	640°C	Active Area:	2.2 X 2.2mm²
Highlight:	JSIR350-4-AL-R-D6 Infrared Photoelectric Sensor , 0.65W Infrared Photoelectric Sensor , 141mA Infrared Photoelectric Sensor

JSIR350-4-AL-R-D6 NDIR Gas Analysis Infrared Radiation Sources On T039

FEATURES
*High membrane temperature up to 850 °C
*High radiation output
*High modulation frequency
*Long lifetime (reliability due to high stability of the membrane)
APPLICATIONS
*NDlR gas analysis
*DIR & ATR spectroscopy
*Photoaccoustic-or optoaccustic spectroscopy

Specification:

Spectral output range	2-15um
Active area	2.2 x 2.2mm2
Hot resistant	40±20Ω
Temperature coeffcient type	500ppm/K
Time constant type	30ms

JSIR350-4-AL-R-D6 NDIR Gas Analysis Infrared Radiation Sources On T039 0
