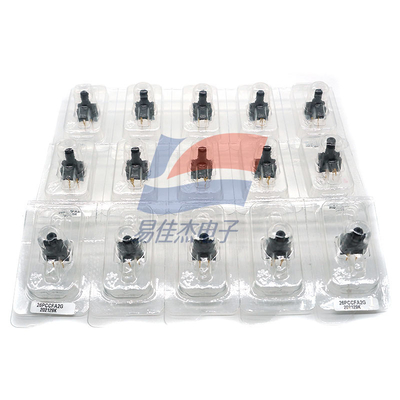

26PCCFA2G Board Mount Pressure Sensors Gauge And Differential Type

Large Image : 26PCCFA2G Board Mount Pressure Sensors Gauge And Differential Type

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	26PCCFA2G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

26PCCFA2G Board Mount Pressure Sensors Gauge And Differential Type

Description

Pressure Type:	Gauge, Differential	Minimum Operating Temperature:	-40 Degrees Celsius
Accuracy:	0.2%	Maximum Operating Temperature:	+85 Degrees Celsius
Operating Pressure:	15 Psi	Mounting Style:	Through Hole
Output Type:	Analog	Port Type:	Single Shaft Barbless
Highlight:	15 Psi Electronic Pressure Sensor , 26PCCFA2G Electronic Pressure Sensor , Precision Measurement Electronic Pressure Sensor

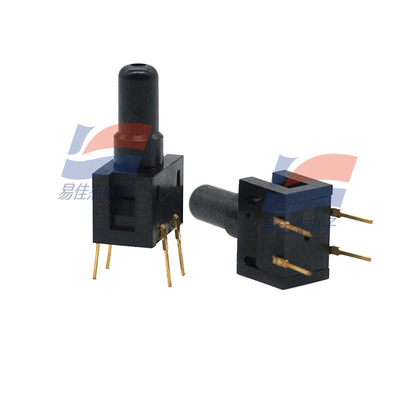

26PCCFA2G Board Mount Pressure Sensors Gauge And Differential Type

Miniature Low Pressure Sensors
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.

Operating Pressure	15 psi
Accuracy	0.2 %
Output Type	Analog
Mounting Style	Through Hole
Operating Supply Voltage	10 V
Port Type	Single Axial Barbless
Package / Case	SIP-4
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Port Size	0.2 in
Supply Voltage - Max	16 V

26PCCFA2G Board Mount Pressure Sensors Gauge And Differential Type 0
