G12183-010K In GaAs PIN Photodiode Sensors Long Wavelength Type Low Noise

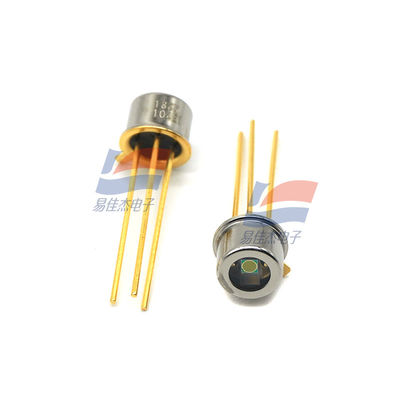

Large Image : G12183-010K In GaAs PIN Photodiode Sensors Long Wavelength Type Low Noise

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamastu
Model Number:	G12183-010K

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

G12183-010K In GaAs PIN Photodiode Sensors Long Wavelength Type Low Noise

Description

Colling:	Non-Cooled	Cutoff Wavelength:	2.55 To 2.6 Um
Operating Temperature:	-40 To +85℃	Photosensitive Area:	0.3 To 3 Mm
Storage Temperature:	-55 To +125℃	Package:	TO-18
Highlight:	Industrial Use Infrared Photoelectric Sensor , G12183-010K Infrared Photoelectric Sensor , G12183-010K

G12183-010K In GaAs PIN Photodiode Sensors Long Wavelength Type Low Noise

Features
*Cutoff wavelength: 2.55 to 2.6 um
*Low cost
*Photosensitive area: oO.3 to o3 mm
*Low noise
*High sensitivity
*High reliability
*High-speed response
*High short-wavelength sensitivity
(G12183-210KA-03):0.4 A/W(A=900 nm)

Applications
*Optical power meters
*Gas analysis
*Moisture meters
*NIR(near infrared) photometry

Options
*Amplifer for InGaAs PIN photodiode C4159-03
*Heatsink for one.stage TE-cooled type A3179
*Heatsink for two-stage TE-cooled type A3179-01
excluding G12183-210KA-03)
*Temperature controller forTE-cooled type C1103-04

Specification:

Peak sensitivity wavelength (typ.)	2.3 μm
Photosensitivity (typ.)	1.3 A/W
Dark current (max.)	30000 nA
Cutoff frequency (typ.)	6 MHz
Terminal capacitance (typ.)	500 pF
Noise equivalent power (typ.)	1×10-12 W/Hz1/2

G12183-010K In GaAs PIN Photodiode Sensors Long Wavelength Type Low Noise 0
