S16786-0515WM Near Infrared High Sensitivity MPPC Methyl Methacrylate

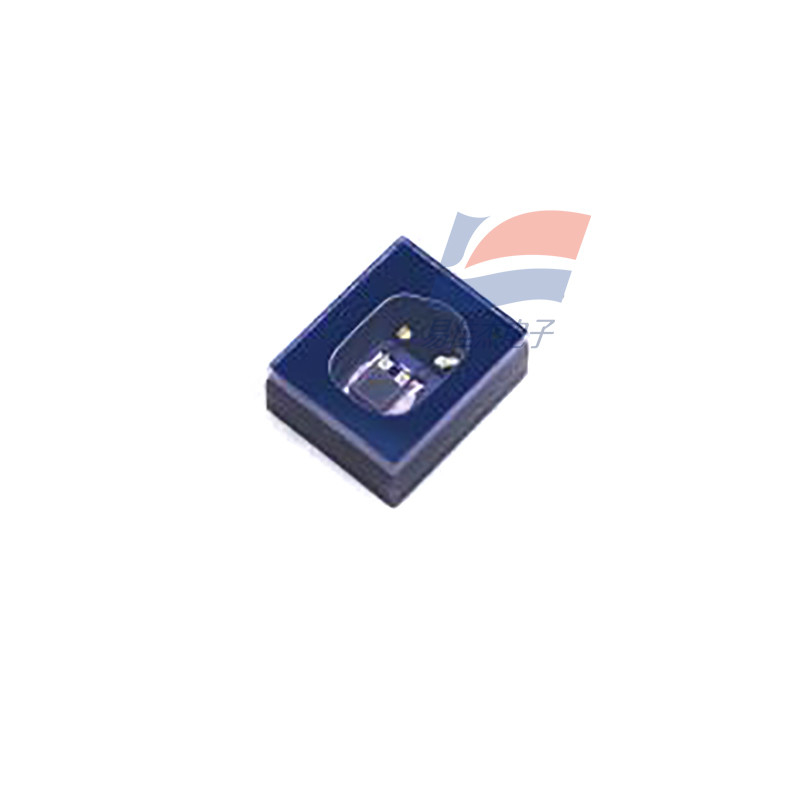

Large Image : S16786-0515WM Near Infrared High Sensitivity MPPC Methyl Methacrylate

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamastu
Model Number:	S16786-0515WM

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

S16786-0515WM Near Infrared High Sensitivity MPPC Methyl Methacrylate

Description

Pixel Pitch:	15um	Effective Photosensitive Area:	0.5x0.5mm
Package:	Surface Mount Type	Refractive Index Of Window Material:	1.53
Number Of Pixels:	1089	Fill Factor:	90%
Highlight:	S16786-0515WM Infrared Photoelectric Sensor , S16786-0515WM , 0.5mm Infrared Photoelectric Sensor

S16786-0515WM Near Infrared High Sensitivity MPPC Methyl Methacrylate

The S16786-0515WM is a near-infrared high-sensitivity Mppc (SiPM) designed for LiDAR applications. The smaller SPAD
(Single Photon Avalanche Diode) size improves the dynamic range, and the microlens provide a high PDE (Photon Detection
Effciency). And MPpCs come standard with a trench to reduce crosstalk.

Features
High photon detection efficiency: 15%% (λ=905 nm)
Low crosstalk probability: 2%% typ.
Equipped with microlens

Applications
Distance measurement
LiDAR

Datasheet

Effective photosensitive area	0.5 x 0.5mm
Pixel pitch	15um
Number of pixels	1089
Fill factor	90%
Package	Glass epoxy
Window material	Borosilicate glass with AR coating

S16786-0515WM Near Infrared High Sensitivity MPPC Methyl Methacrylate 0
