87N-5000S-0R Pressure Sensor Silicon Piezoresistive Ultra Stable Pressure Transmitter

Name: 87N-5000S-0R Pressure Sensor Silicon Piezoresistive Ultra Stable Pressure Transmitter
Brand: ShenzhenYijiajie Electronic Co., Ltd.
SKU: 87N-5000S-0R
Price: 16.00 USD
Availability: InStock

All Products

Oxygen Gas Sensor
(200)

Electrochemical Gas Sensor
(15)

Gas Sensor
(1326)

Carbon Dioxide Sensor
(16)

Electronic Gas Analyzer
(63)

Medical Air Flow Sensor
(172)

Humidity Temperature Sensor
(97)

Electronic Pressure Sensor
(497)

Hall Effect Sensor
(56)

Current Sensor
(49)

Infrared Photoelectric Sensor
(187)

UV Photodiode Sensor
(80)

Other Sensors
(210)

Gas Sensor Module
(7)

Certification

I'm Online Chat Now

87N-5000S-0R Pressure Sensor Silicon Piezoresistive Ultra Stable Pressure Transmitter

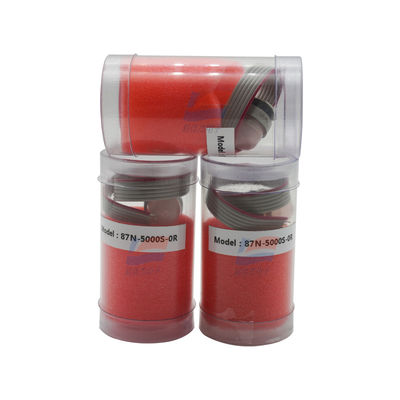

Large Image : 87N-5000S-0R Pressure Sensor Silicon Piezoresistive Ultra Stable Pressure Transmitter

Product Details:

Place of Origin:	USA
Brand Name:	TE
Model Number:	87N-5000S-0R

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

87N-5000S-0R Pressure Sensor Silicon Piezoresistive Ultra Stable Pressure Transmitter

Description

Sub-Category:	Resistors	Mounting Method:	PCB Mount
Type:	Pressure Sensor	Style:	Pressure-resistance
PN:	87N-5000S-OR	Product Category:	Thick Film Resistors - SMD
Highlight:	PCB Mount Pressure Sensor , Industrial Applications Pressure Sensor , 87N-5000S-OR Pressure Sensor

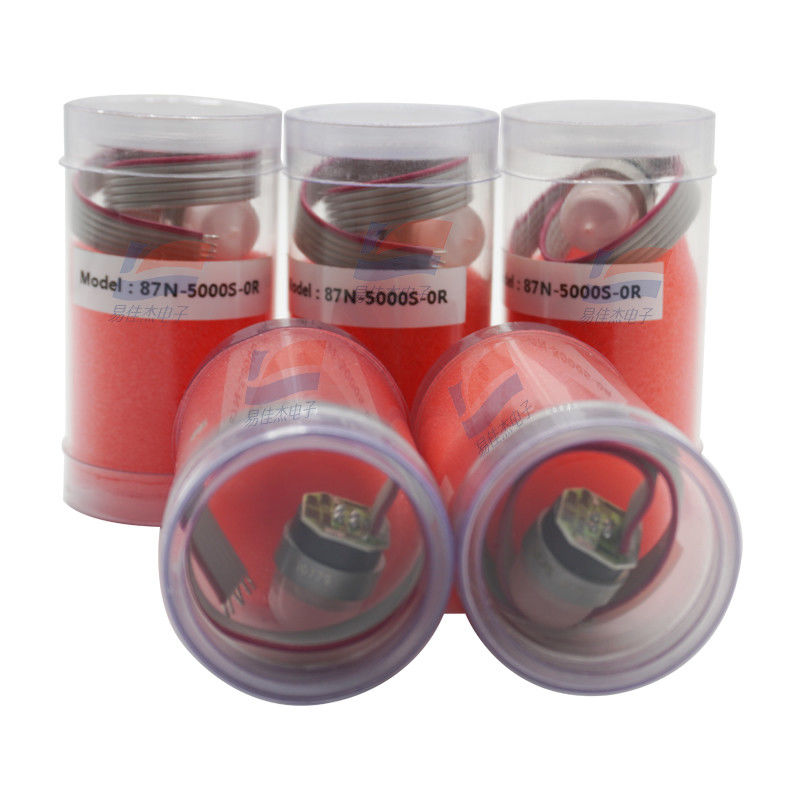

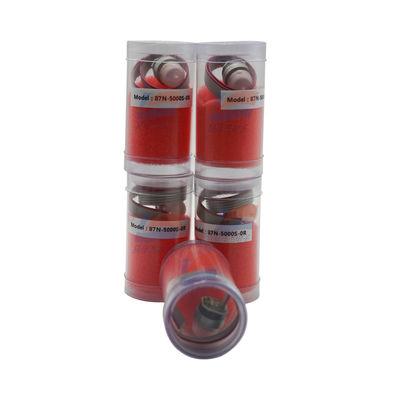

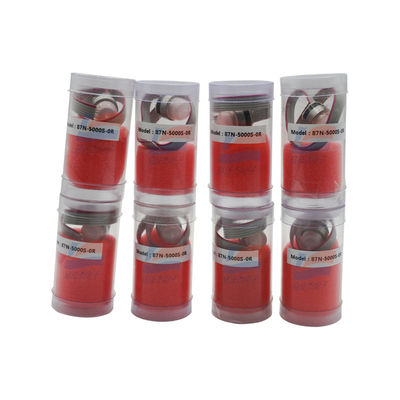

87N-5000S-0R Pressure Sensor Silicon Piezoresistive Ultra Stable Pressure Transmitter

Core Functions: The sensor chip is mounted on a TO-type base and resistance-welded to the housing. The thick-film resistor on the ceramic compensation plate is laser-corrected and equipped with a gain adjustment resistor to standardize the pressure sensitivity gain amplification factor, adapting to the accuracy requirements of different OEM equipment.

Specification:

Pressure range	0 - 5000 Psi (approximately 344 bar)
Pressure type	Sealing pressure ("S" in the model number corresponds to the sealing pressure type)
Output signal	0 - 100mV analog signal
Nonlinearity error	±0.25%
Power supply current	Typical 1.5mA
Pressure withstand range	3 times the range, suitable for high-pressure operating conditions
Temperature compensation range	-20℃ - 85℃

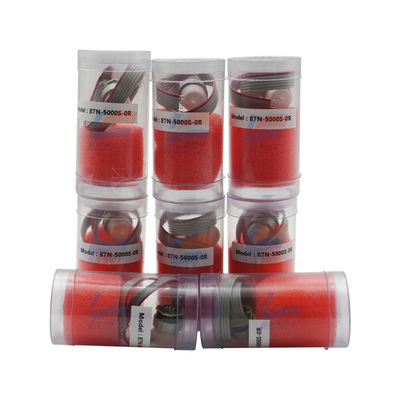

87N-5000S-0R Pressure Sensor Silicon Piezoresistive Ultra Stable Pressure Transmitter 0
