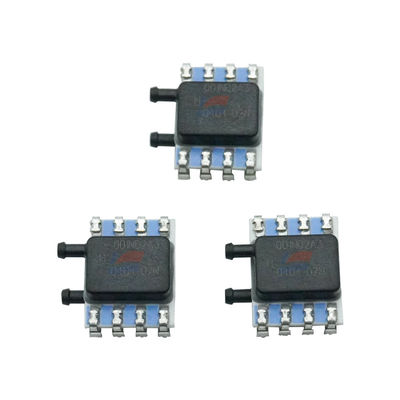

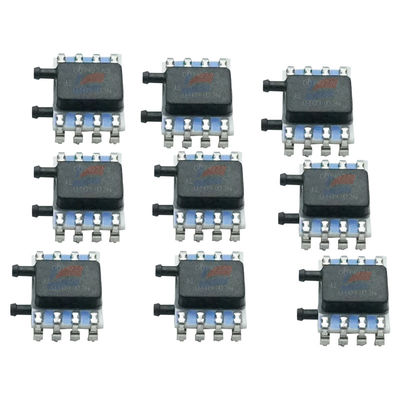

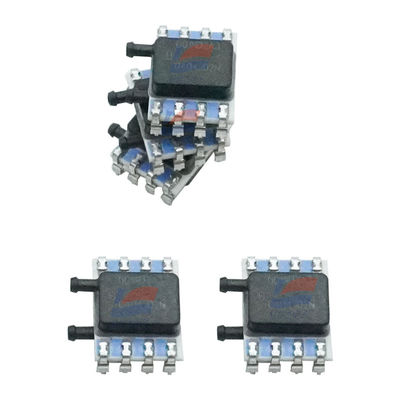

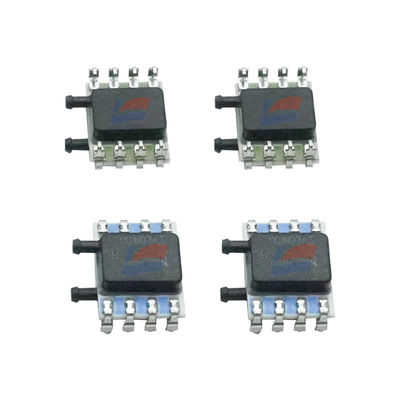

HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V

HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V
HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V

Large Image :  HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V

Product Details:
Place of Origin: USA
Brand Name: YJJ
Model Number: HSCMRRN001ND2A3
Payment & Shipping Terms:
Packaging Details: Standard Package
Delivery Time: 3-5workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V

Description
Working Supply Voltage: 3.3 V Mounting Method: SMD/SMD
Pressure Type: Differential Interface Type: I2C
Accuracy: 3% Output Type: Digital
Highlight:

Small Size Pressure Sensor

,

I2C Interface Pressure Sensor

,

HSCMRRN001ND2A3 Pressure Sensor

HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V



High-precision differential pressure sensor, primarily for gas pressure detection in medical and industrial fields.



Core features: Built-in dedicated ASIC circuitry enables comprehensive calibration and temperature compensation of the sensor's zero point, sensitivity, temperature coefficient, and nonlinearity; digital output values ​​are updated at a rate of approximately 2kHz; low power consumption makes it compatible with battery-powered devices; and it meets IPC/JEDEC J-STD-020D.1 Humidity Sensitivity Level 1 requirements.



Specification:

Pressure Type
 Differential
Operating Pressure 1 in H2O
Accuracy 3 %
Output Type Digital
Mounting Style SMD/SMT
Interface Type I2C
Operating Supply Voltage 3.3 V
Port Type Dual Radial Barbed, Same Side
Resolution 12 bit
Package / Case SMD-8
Minimum Operating Temperature 0℃
Maximum Operating Temperature + 50℃
Operating Supply Current 3.1 mA
Port Size 1.93 mm
Supply Voltage - Max 3.6 V
Supply Voltage - Min 3 V

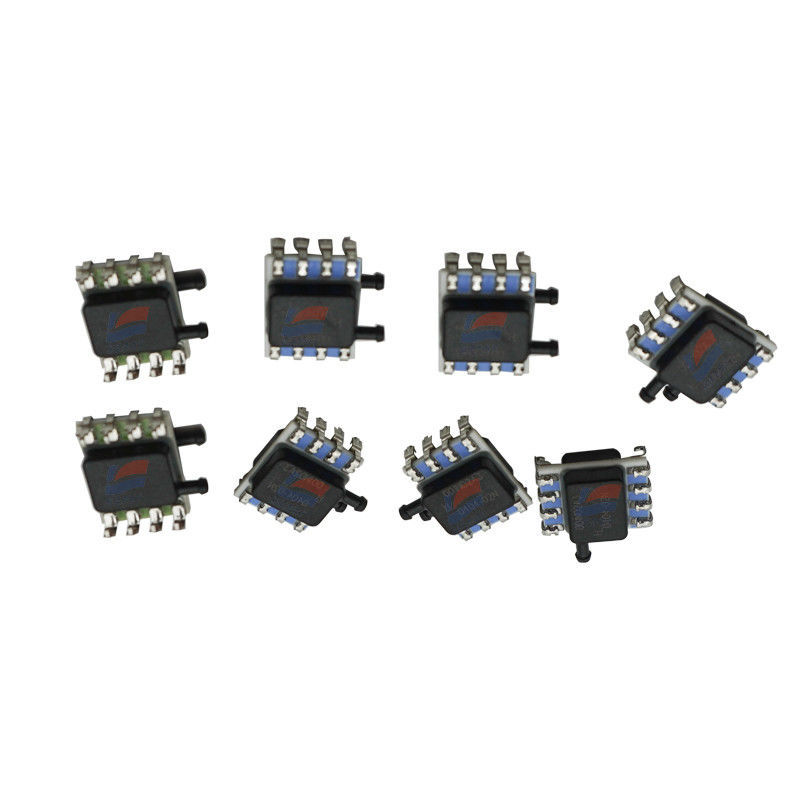

HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V 0





Tag:

Oil Filled Pressure Sensor,

Piezoresistive Pressure Sensor,

Piezoresistive Differential Pressure Sensor
