Product Details:
|
| Highlight: | Industrial Automation Pressure Sensor,Medical Ventilation Pressure Sensor,XGZP6887A025HPGPN Pressure Sensor |
||
|---|---|---|---|

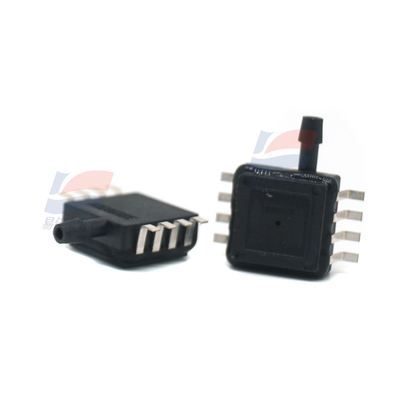

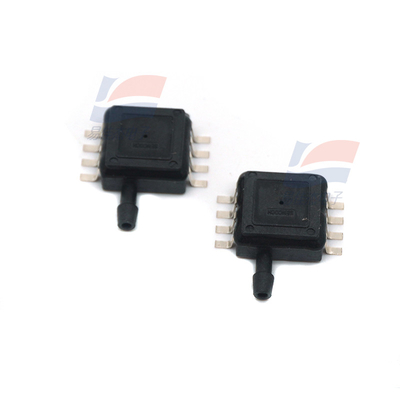

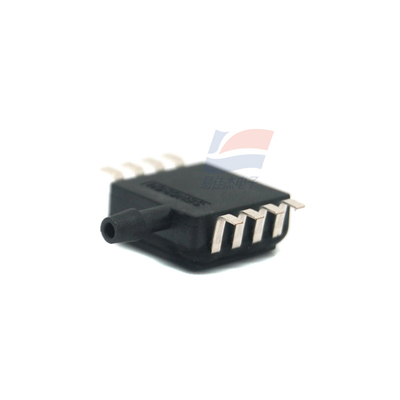

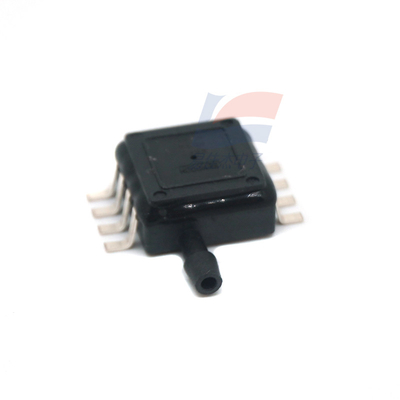

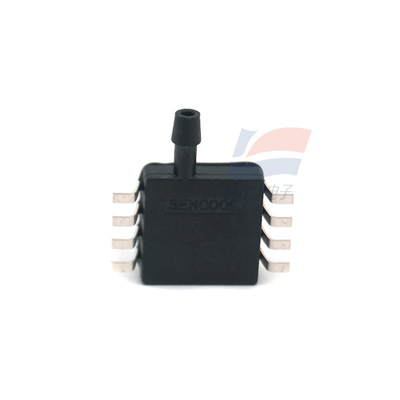

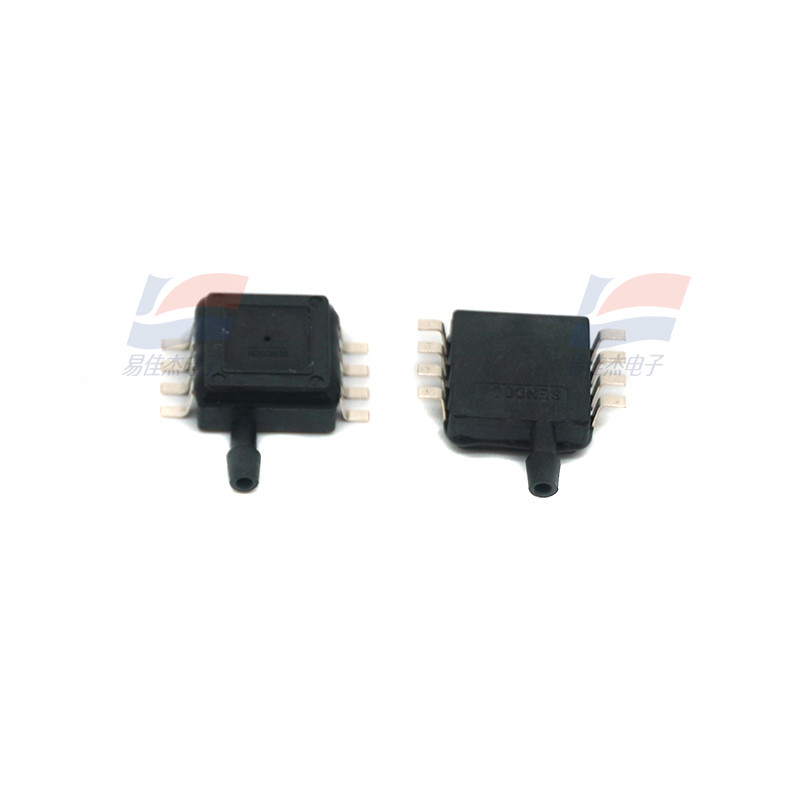

XGZP6887A025HPGPN Pressure Sensor Industrial Automation Medical Ventilation
Wide Ranges: -100kPa…0kPa…700kPa(show in Pressure Range Example
Gauge Pressure Type (Positive&Wacuum)
For Non-corrosive Gas or Air
Optional 5V and 3.3v Voltage
Calibrated Amplified Analog Signal(Refer to XGZP6887D for l2C interface)
Temp,Compensated:0℃~+60℃(32F~+140℉)
Horizontal Barbed Inlet
APPLICATIONS
Medical&Healthcare
Industrial&Automation
Domestic Appliance
Consumer Electronic
Automotive Electronic
| Available Pressure Range | -100…-2.5～0～2.5…700kPa |
| Power Supply | 4.75~5.25Vdc |
| Current Consumption | 2mA |
| Output Range | 0.5～4.5Vdc |
| 3.3Vdc Power Supply | 0.2～2.7Vdc |
| Pressure | ±2.5%FSS |
| Pressure | ≤5kPa 5XFSS |
| 200kPa＜Pressure | 1.5XFSS |
| Compensation Temperature | 60℃ |
| Operating Temperature | -30~100℃ |
| Storage Temperature | -40~125℃ |
| Response Time(T90) | 2.5ms |
