Product Details:
|
| Pressure Difference Range: | 2~50 Or ±(2~50)Pa | Working Power Supply: | 3.0~3.6VDC, 10mA |
|---|---|---|---|
| Output Mode: | Linear, IC/analog Voltage (optional) | Analog Output Range: | 0.4~2.4VDC |
| Digital Output Resolution: | I2C Digital Signal 14 Bits, Analog Voltage 12 Bits | ||
| Highlight: | Digital Differential Pressure Sensor,Analog Signal Differential Pressure Sensor,FSP1000-50-EV-U Differential Pressure Sensor |
||

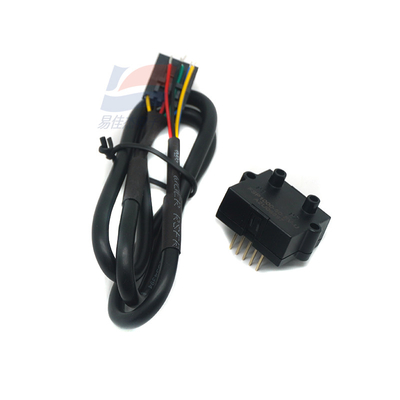

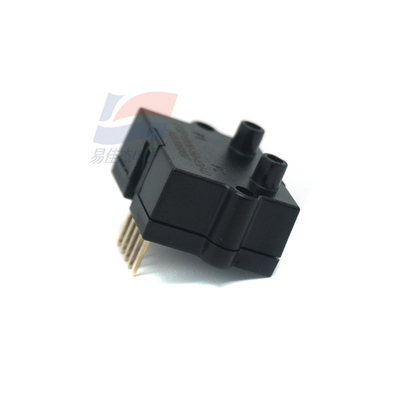

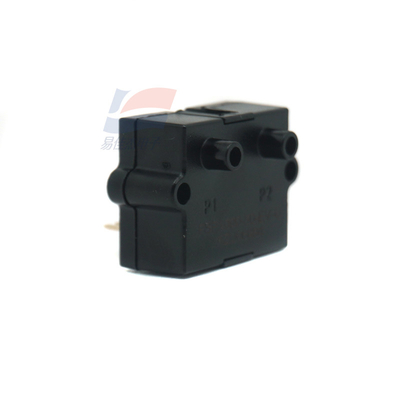

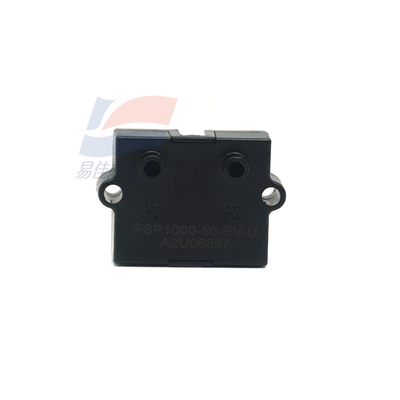

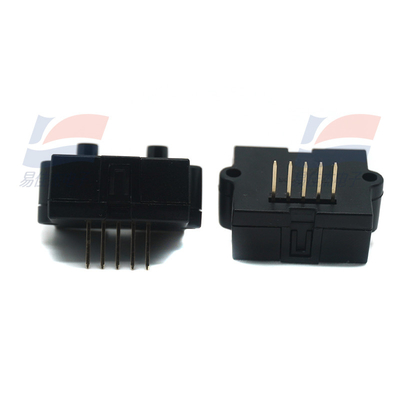

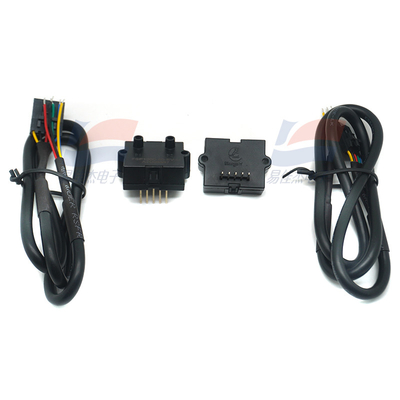

FSP1000-50-EV-U Digital Differential Pressure Sensor Analog Signal
The FSP1000 series digital micro differential pressure sensors are made using the company's independently developed micro-electromechanical system (MEMS) flow sensor technology and chip packaging technology. FSP1000 has high sensitivity at low differential pressure, temperature and altitude compensation, fast response time, and provides linearized digital (1C) and analog signals at the same time, which can be used in HVAC (heating, ventilation and air conditioning system) and CPAP system (continuous positive airway pressure system).
| Electrical interface | Five pins, 2.54mm |
| Response time | 20ms |
| Flow resistance | <95ml/min @500Pa |
| Accuracy | ±(2.0+0.8FS)% |
| Repeatability | 0.5+0.25FS% |
| Temperature drift | <1.6%110℃ |
