15 PSI-A-4V-ASCX Board Mount Pressure Sensor Absolute Pressure Type Analog Output SIP4

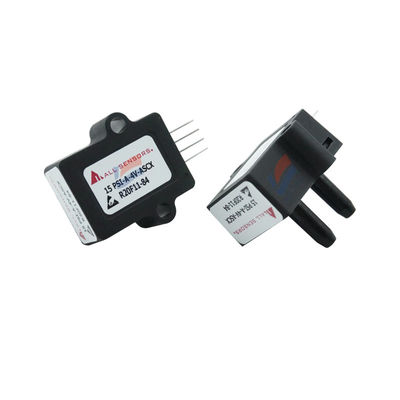

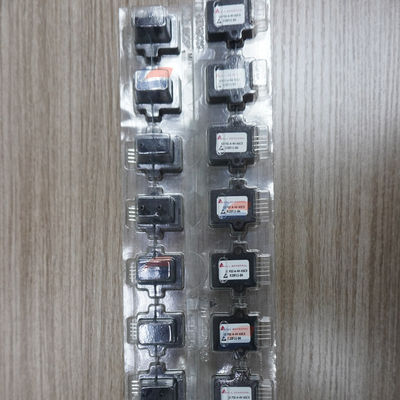

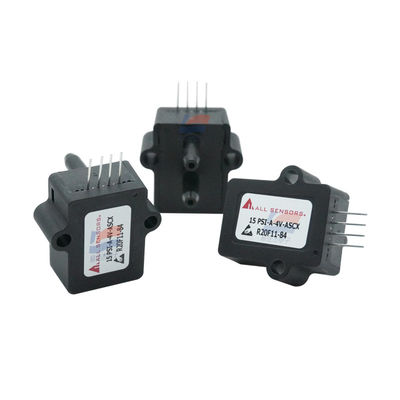

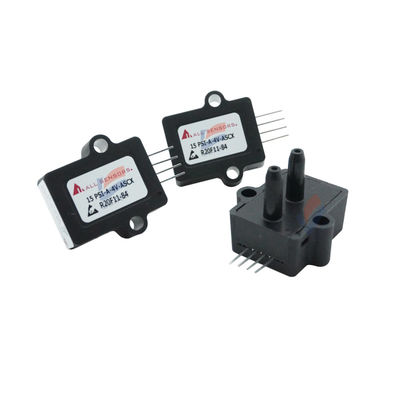

Large Image : 15 PSI-A-4V-ASCX Board Mount Pressure Sensor Absolute Pressure Type Analog Output SIP4

Product Details:

Place of Origin:	USA
Brand Name:	All Sensor
Model Number:	15 PSI-A-4V-ASCX

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

15 PSI-A-4V-ASCX Board Mount Pressure Sensor Absolute Pressure Type Analog Output SIP4

Description

Pressure Type:

Absolute

Operating Pressure:

0 Psi To 15 Psi

Accuracy:

0.1%

Output Type:

Analog

Highlight:

15 PSI Board Mount Pressure Sensor

0.1% Accuracy Board Mount Pressure Sensor

PSI-A-4V-ASCX Board Mount Pressure Sensor

15 PSI-A-4V-ASCX Board Mount Pressure Sensor Absolute Pressure Type Analog Output SIP4

Features
• 5 Vdc Supply
• High Level Voltage Output
• Ratiometric 4.5 V Span
• Temperature Compensated
• Calibrated Zero and Span
• MULTIPLE Pressure Ranges

Applications
• Medical Instrumentation
• Environmental Instrumentation
• HVAC Instrumentation
• Pneumatic Controls

Port Type:	Dual Radial Barb
Package/Case	SIP-4
Minimum Operating Temperature	- 25 degrees Celsius
Maximum Operating Temperature	+105 degrees Celsius
Operating Supply Current	7.5 mA
Output Voltage	4.5 V
Port Size	4.4 mm to 4.8 mm

15 PSI-A-4V-ASCX Board Mount Pressure Sensor Absolute Pressure Type Analog Output SIP4 0
