Product Details:
|
| Product Category: | Board Mount Pressure Sensor | Pressure Type: | Absolute |
|---|---|---|---|
| Operating Pressure: | 0 Psi To 15 Psi | Accuracy: | 0.1% |
| Output Type: | Analog | ||
| Highlight: | 15 PSI Board Mount Pressure Sensor,0.1% Accuracy Board Mount Pressure Sensor,PSI-A-4V-ASCX Board Mount Pressure Sensor |
||

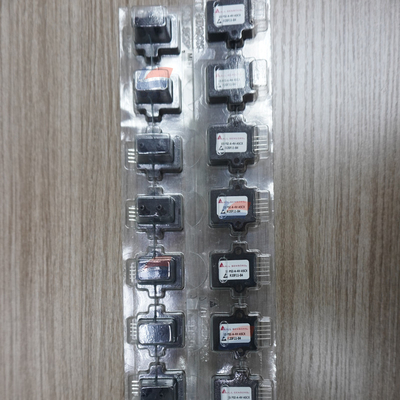

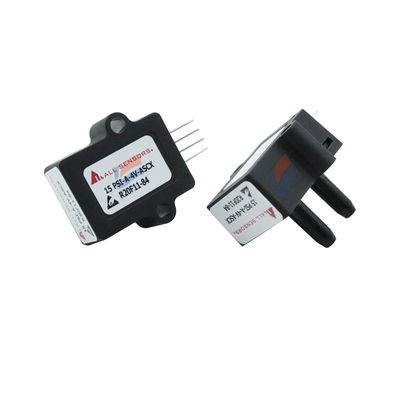

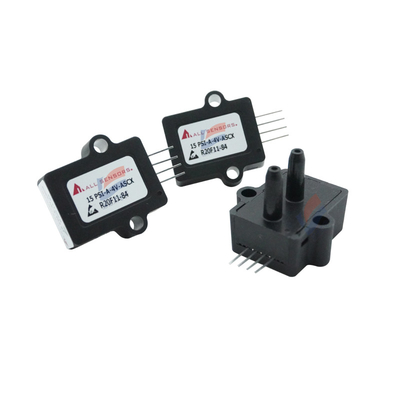

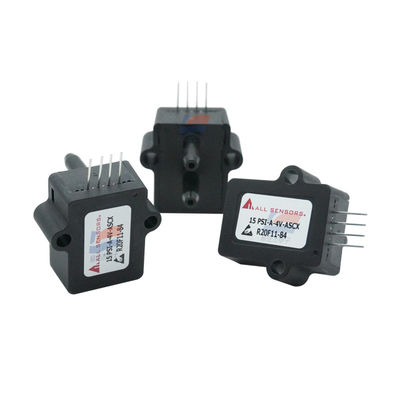

15 PSI-A-4V-ASCX Board Mount Pressure Sensor Analog Output Type
Features
• 5 Vdc Supply
• High Level Voltage Output
• Ratiometric 4.5 V Span
• Temperature Compensated
• Calibrated Zero and Span
• MULTIPLE Pressure Ranges
Applications
• Medical Instrumentation
• Environmental Instrumentation
• HVAC Instrumentation
• Pneumatic Controls
| Port Type: | Dual Radial Barb |
| Package/Case | SIP-4 |
| Minimum Operating Temperature | - 25 degrees Celsius |
| Maximum Operating Temperature | +105 degrees Celsius |
| Operating Supply Current | 7.5 mA |
| Output Voltage | 4.5 V |
| Port Size | 4.4 mm to 4.8 mm |
