Product Details:
|
| Span: | 75-150mV | Span (2psi Version): | 30-60mV |
|---|---|---|---|
| Zero Pressure Output: | -2 To 2mV | Pressure Non Linearity: | -0.1(±0.05) |
| Pressure Hysteresis: | -0.05（±0.01） | ||
| Highlight: | PC Board Mountable Pressure Sensor,87N-5000S-OC Mountable Pressure Sensor,TO-8 Package Mountable Pressure Sensor |
||

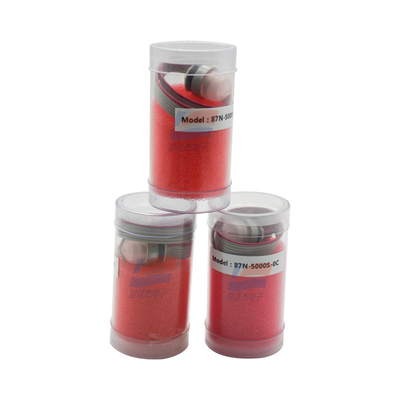

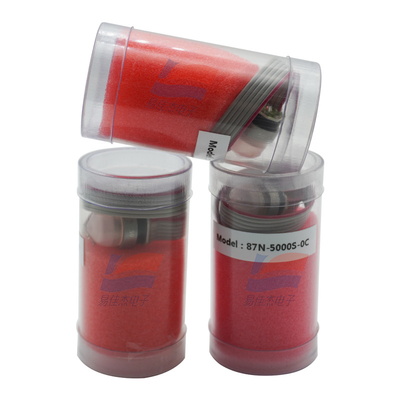

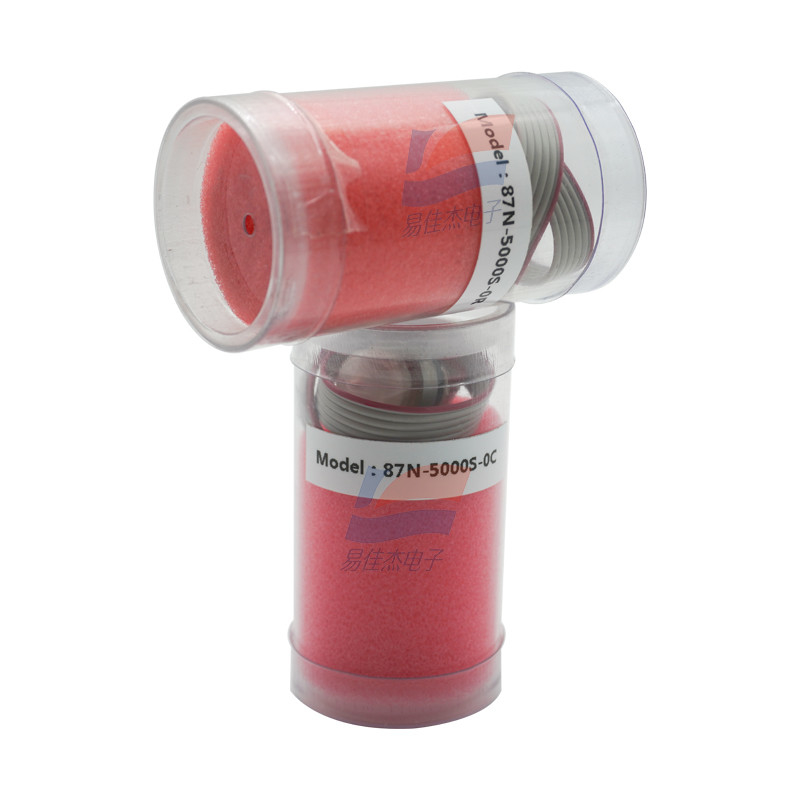

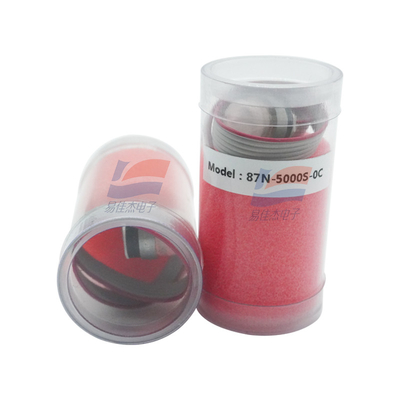

87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
SPECIFICATIONS
· PC Board Mountable Pressure Sensor
· 0-100 mV Output
· Current Excitation
· Gage and Differential
· Temperature Compensated
The 23 and 33 are temperature compensated piezoresistive silicon pressure sensors packaged in a TO-8
configuration. It provides excellent performance and long-term stability.
Gage and absolute pressure ranges from 0-2 to 0-250 psi are available. Integral temperature compensation is provided
over a range of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize
pressure sensitivity variations by programming the gain of an external differential amplifier. This provides sensitivity
interchangeability of ±1%. Please refer to the 23 and 33 1 psi datasheets for low pressure applications.
| Supply Current | 1.2-2.0mA |
| Response Time (10% to 90%) | 1.0ms |
| Output Noise (10Hz to 1kHz) | 1.0 |
| Insulation Resistance (50 Vdc) | 50mΩ |
| Long Term Stability | ±0.2%span |
