Product Details:
|
| Detection Rate (typical Value): | 1.3 X 108 Cm · Hz1/2/W | Rise Time (typical Value): | 20 Ms |
|---|---|---|---|
| Rise Time (Max.): | 30 Ms | Coefficient (typical Value): | ±0.1%/°C |
| Highlight: | High Sensitivity Thermopile Detector,Flame Detection Thermopile Detector,YJJ T15770 Thermopile Detector |
||
Product Description:

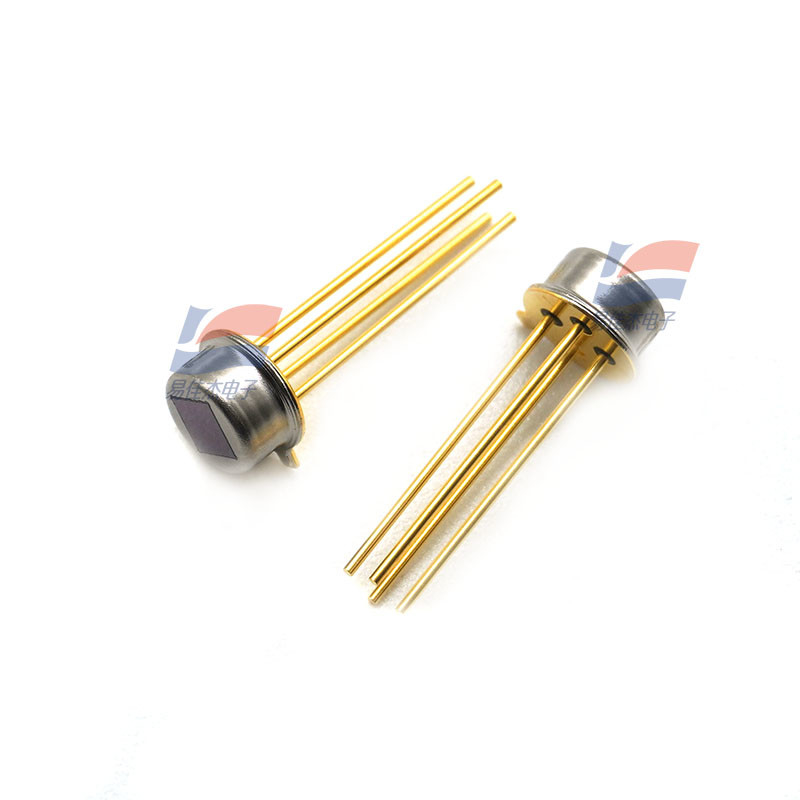

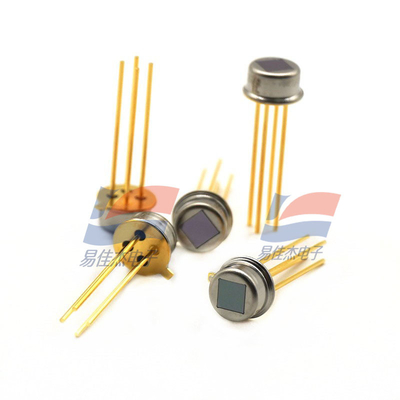

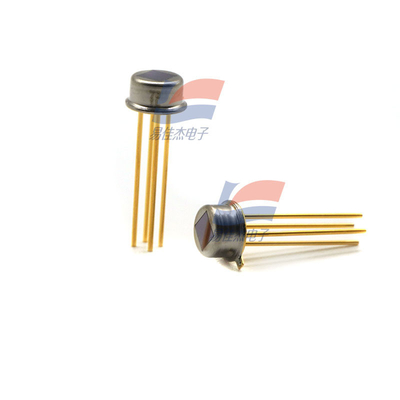

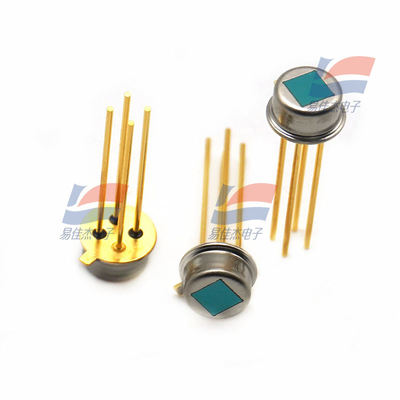

T15770 High Sensitivity Thermopile Detector For Flame Detection
Features:
The T15770 is a high sensitivity thermopile detector for flame detection. The infrared energy generated by the flame has a wavelength characteristic of 4.45μm. The T15770's light receiving window uses a band-pass filter to pass light of this wavelength.
peculiarity
- Spectral sensitivity: 4.45μm
- TO-18 package
- High sensitivity
Encapsulate TO-18
Receiving surface 1.2 x 1.2 mm
Sensitivity wavelength range 4.45μm
Sensitivity (typical value) 50 V/W
Noise equivalent power (typical value) 0.9nW /Hz1/2
Detection rate (typical value) 1.3 x 108 cm · Hz1/2/W
Rise time (typical value) 20 ms
Rise time (Max.) 30 ms
Component resistance temperature coefficient (typical value) ±0.1%/°C
Field of view (typical value) 90 degrees
Specifications:
| Encapsulate | TO18 |
| Receiving surface | 1.2 x 1.2 mm |
| Sensitivity wavelength range | 4.45μm |
| Sensitivity (typical value) | 50 V/W |
