Product Details:
|
| Receiving Surface: | φ5.0mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-8 | Refrigeration: | Uncooled Type |
| Highlight: | large Area Silicon PIN Photodiode,High Speed Silicon PIN Photodiode,YJJ S3071 Silicon PIN Photodiode |
||
Product Description:

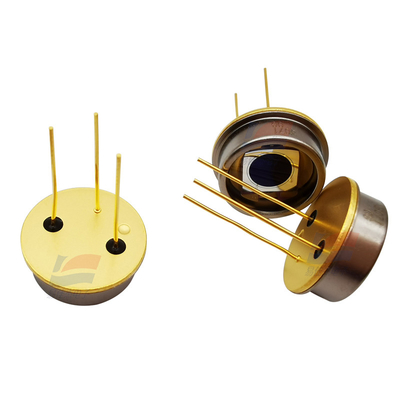

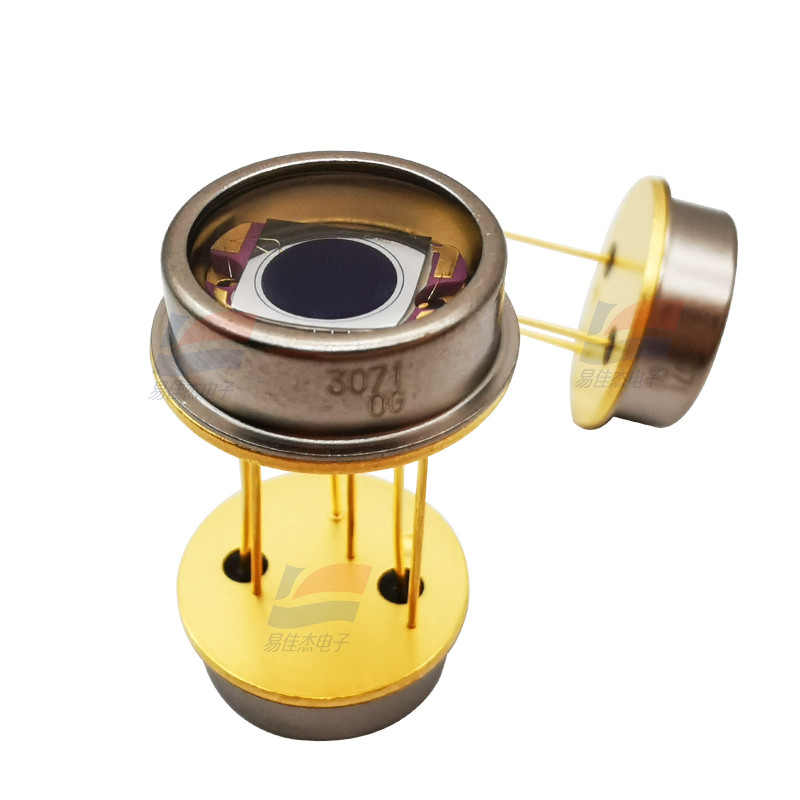

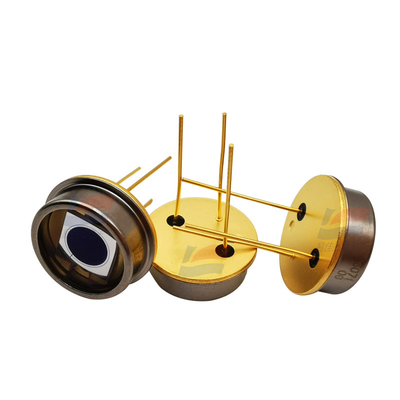

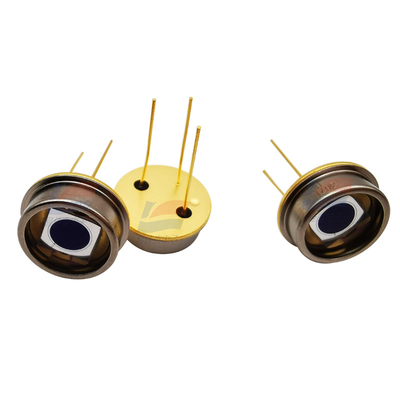

S3071 large Area High Speed Silicon PIN Photodiode
Features:
Large area high speed silicon PIN photodiode
The S3071 is a silicon PIN photodiode with a relatively large light-receiving surface, but provides excellent frequency response at 40 MHz. This photodiode is suitable for spatial light transmission (free space optical elements) and high-speed pulsed light detection.
peculiarity
- Receiving surface size: φ5.0mm
- Cut-off frequency: 40 MHz (VR=24 V)
- High reliability: TO-8 metal package
Receiving surface φ5.0mm
Encapsulation metal
Package category TO-8
Refrigeration uncooled type
Reverse voltage (Max.) 50 V
Spectral response range 320 to 1060 nm
Maximum sensitivity wavelength (typical value) 920 nm
Photosensitivity (typical value) 0.54 A/W
Dark current (Max.) 10000 pA
Cut-off frequency (typical value) 40 MHz
Junction capacitance (typical) 18 pF
Noise equivalent power (typical value) 2.1×10-14 W/Hz1/2
Measurement conditions Ta = 25°C, typical value, sensitivity: λ = 780 nm, dark current: VR = 24 V, cutoff frequency: VR = 24 V, junction capacitance: VR = 24 V, f = 1 MHz, λ = λp, noise equivalent power: VR = 24 V, λ = λp, unless otherwise noted
Specifications:
| Reverse voltage (Max.) | 50 V |
| Spectral response range | 320 to 1060 nm |
| Maximum sensitivity wavelength (typical value) | 920 nm |
| Photosensitivity (typical value) | 0.54 A/W |
