Product Details:
|
| Receiving Surface: | 5.8 × 5.8 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-8 | Reverse Voltage (Max.): | 5V |
| Highlight: | High UV Resistance Silicon Photodiodes,UV Monitors Silicon Photodiodes |
||
Product Description:

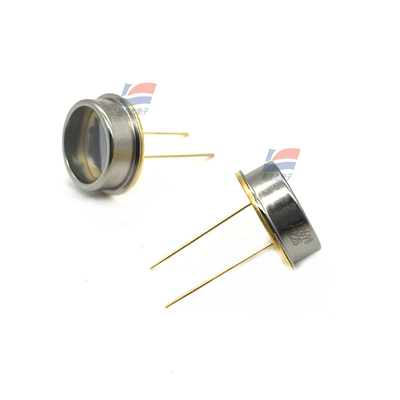

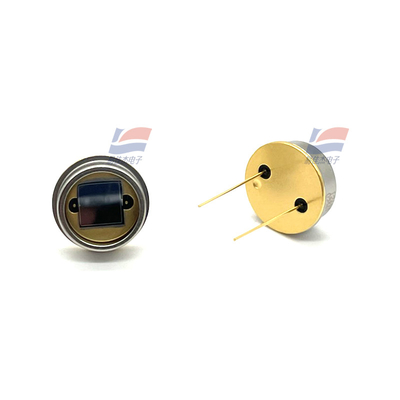

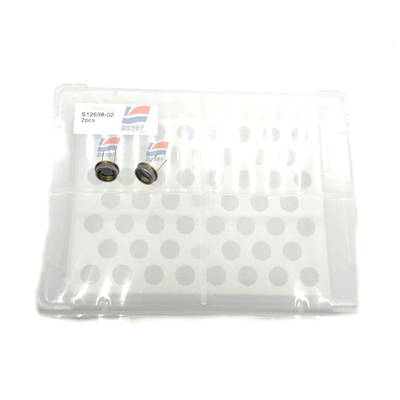

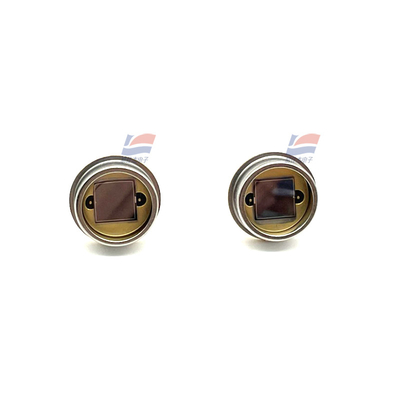

S12698-02 High UV Resistance Is Suitable For Silicon Photodiodes For UV Monitors
Features:
High UV resistance, photodiodes for UV monitors
The S12698 series silicon photodiodes have a resin-free construction that provides high reliability in monitoring UV light. They exhibit low sensitivity degradation under ultraviolet irradiation and are suitable for monitoring strong ultraviolet light sources and other uses.
peculiarity
- UV glass window (sealed)
- High sensitivity in the UV region
- High reliability for monitoring UV radiation
- No resin material is used
Receiving surface 5.8 × 5.8 mm
Encapsulation metal
Package category TO-8
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 190 to 1000 nm
Maximum sensitivity wavelength (typical value) 800 nm
Photosensitivity (typical value) 0.38 A/W
Dark current (Max.) 100 pA
Rise time (typical value) 1.5μs
Junction capacitance (typical) 700 pF
Noise equivalent power (typical value) 3.5×10-14 W/Hz1/2
Specifications:
| Reverse voltage (Max.) | 5 V |
| Spectral response range | 190 to 1000 nm |
| Maximum sensitivity wavelength (typical value) | 800 nm |
| Photosensitivity (typical value) | 0.38 A/W |
