Product Details:
|
| Dark Current (Max.): | 5 NA | Cut-off Frequency (typical Value): | 900 MHz |
|---|---|---|---|
| Junction Capacitance (typical): | 2 PF | Breakdown Voltage (typical Value): | 150V |
| Highlight: | Silicon APD Avalanche Photodiode,Short Wavelength Type APD |
||
Product Description:

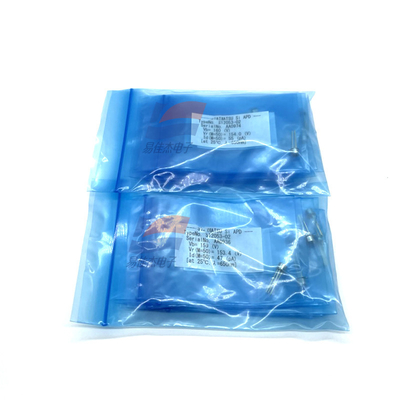

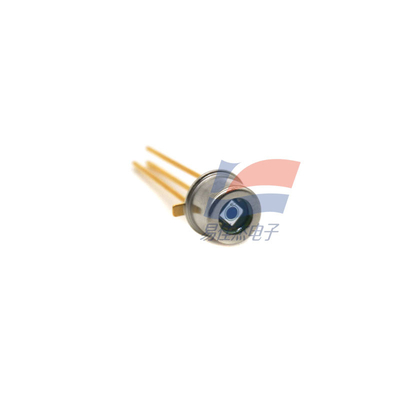

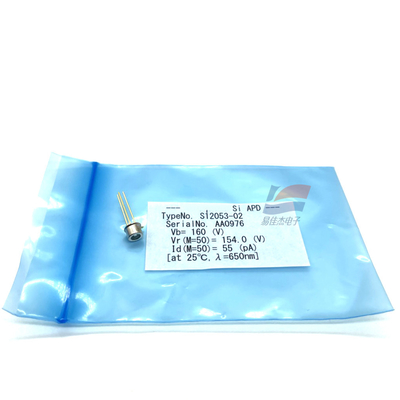

S12053-10 Silicon APD Avalanche Photodiode Short Wavelength Type APD
Features:
peculiarity
- High sensitivity and low noise in the UV to visible range
Type Short wavelength type
(Low bias operation)
Receiving surface φ0.2mm
Encapsulation metal
Package category TO-18
Maximum sensitivity wavelength (typical value) 620 nm
Sensitivity wavelength range 200 to 1000 nm
Photosensitivity (typical value) 0.42 A/W
Dark current (Max.) 5 nA
Cut-off frequency (typical value) 900 MHz
Junction capacitance (typical) 2 pF
Breakdown voltage (typical value) 150 V
Breakdown voltage temperature coefficient (typical value) 0.14 V/°C
Gain rate (typical value) 50
Measurement conditions Typical value Ta = 25°C, unless otherwise stated,
Sensitivity: λ = 620 nm, M = 1
Specifications:
| Reverse voltage (Max.) | 5 nA |
| Spectral response range | 200 to 1000 nm |
| Maximum sensitivity wavelength (typical value) | 620 nm |
| Gain rate (typical value) | 50 |
