Product Details:
|
| Sensitivity Wavelength Range (blue): | 400 To 540 Nm | Sensitivity Wavelength Range (green): | 480 To 600 Nm |
|---|---|---|---|
| Sensitivity Wavelength Range (red): | 590 To 720 Nm | Maximum Sensitivity Wavelength (blue): | 465 Nm |
| Highlight: | RGB Colors Color Sensor,YJJ S9706 Color Sensor,RGB Color Sensor |
||
Product Description:

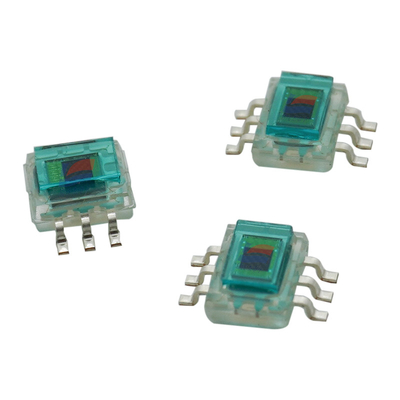

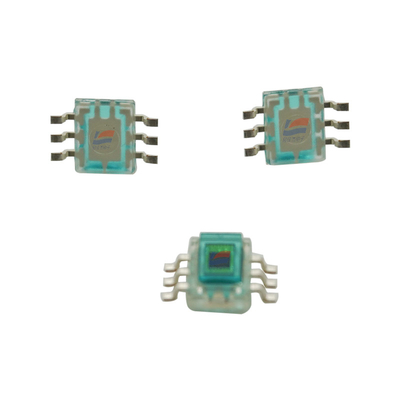

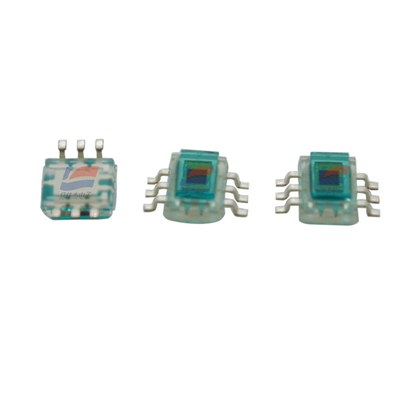

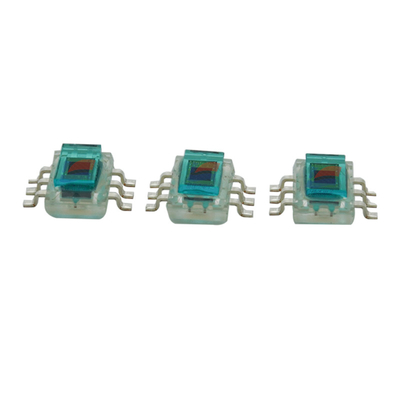

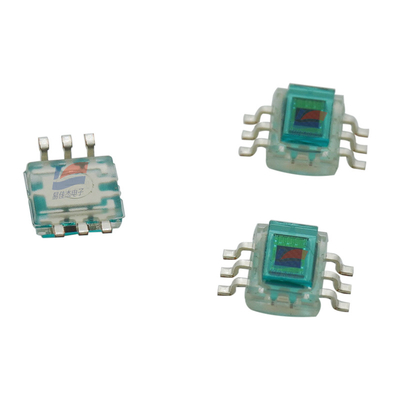

S9706 Color Sensor Can Measure All Three RGB Colors Simultaneously With a 12-bit Digital Output
Features:
S9706 is a digital color sensor that is sensitive to the red (λ=615 nm), green (λ=540 nm), and blue (λ=465 nm) regions of the spectrum. The detection signal is output in serial as 12-bit digital data. Three built-in 12-bit registers can measure RGB three colors at the same time. Sensitivity levels can be adjusted in two steps to cover a wide spectral range.
peculiarity
-12 digit output
- Measure RGB three colors simultaneously
- Two-step sensitivity switching (sensitivity ratio 1:9)
- Low voltage (3.3V) supply
-CMOS single chip optical IC
- No external components required
Specifications:
| Packaging material | plastic |
| Package type | Surface mount type |
| Package size | 4.0 × 4.7 × 2.6 mm |
| Receiving surface | 1.2 × 1.2 mm |
