Product Details:
|
| Sensitivity Wavelength Range (blue): | 400 To 540 Nm | Sensitivity Wavelength Range (green): | 480 To 600 Nm |
|---|---|---|---|
| Sensitivity Wavelength Range (red): | 590 To 720 Nm | Maximum Sensitivity Wavelength (blue): | 465 Nm |
| Highlight: | YJJ S9702 Silicon Photodiode Array,RGB Color Sensor Photodiode Array |
||
Product Description:

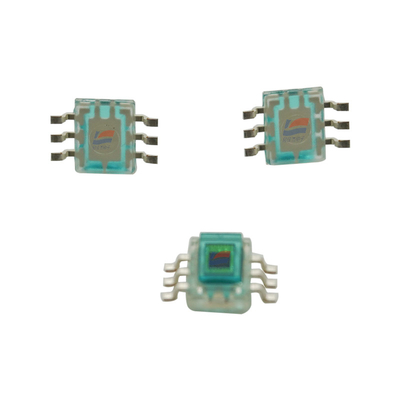

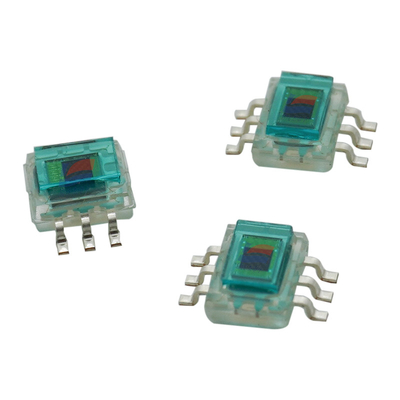

S9702 Silicon Photodiode Array RGB Color Sensor
Features:
RGB Color sensor
The S9702 is a color sensor in a molded plastic package with a 3-channel (RGB) photodiode sensitive to the blue (λp=460 nm), green (λp=540 nm), and red (λp=620 nm) regions of the spectrum. The S9702 has a 3-segment (RGB) light-receiving surface of □1 mm. Compared to the previous model (S9032-02), the S9702 is significantly reduced in size (55% reduction in cubic volume of package size and 43% reduction in area of printed circuit board mounting space).
peculiarity
-3 channel (RGB) silicon photodiode
- Surface mount small plastic package
- Spectral response range close to the sensitivity of the human eye
- No sensitivity in the near infrared region
- Receiving surface: 3 segments (RGB) Receiving surface □1mm
Specifications:
| Packaging material | plastic |
| Package type | Surface mount type |
| Package size | 4.0 × 4.7 × 2.6 mm |
| Receiving surface | 1.2 × 1.2 mm |
