YJJ S7509 Silicon PIN Photodiode Is Used For Spatial Light Transmission Where A Wide Field Of View Is Required

Large Image : YJJ S7509 Silicon PIN Photodiode Is Used For Spatial Light Transmission Where A Wide Field Of View Is Required

Product Details:

Place of Origin:	Japan
Brand Name:	HAMAMATSU
Model Number:	S7509

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	piping
Delivery Time:	3 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2200

Contact Now

YJJ S7509 Silicon PIN Photodiode Is Used For Spatial Light Transmission Where A Wide Field Of View Is Required

Description

Reverse Voltage (Max.):	30 V	Spectral Response Range:	320 To 1100 Nm
Maximum Sensitivity Wavelength (typical Value):	960 Nm	Photosensitivity (typical Value):	0.72 A/W
Highlight:	YJJ S7509 Silicon PIN Photodiode

Product Description:

S7509 Silicon PIN Photodiode Is Used For Spatial Light Transmission Where A Wide Field Of View Is Required

Features:

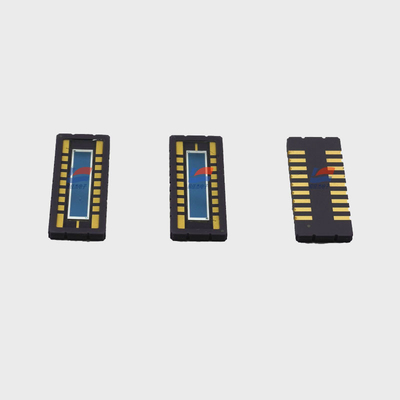

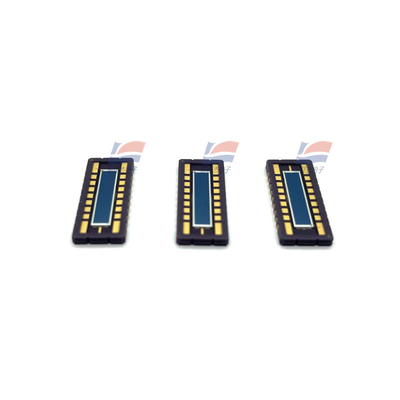

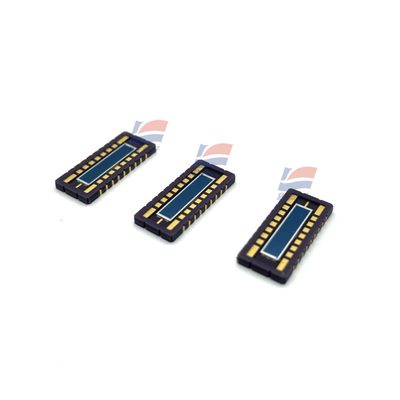

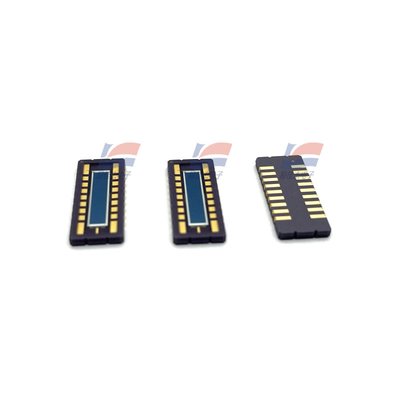

S7509 is a silicon PIN photodiode packaged in a chip carrier for surface mount using automatic reflow soldering technology. The photodiode has a large light-receiving surface and is suitable for spatial light transmission requiring a wide field of view. Other uses include POS scanners, power meters, and analytical instruments.

peculiarity

- Receiving surface: 2 × 10 mm

- Ceramic chip carrier package for surface mount

- Suitable for reflow welding

- High sensitivity

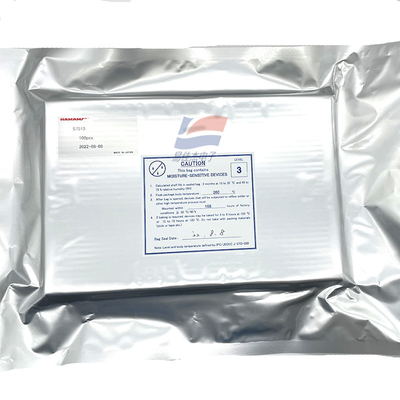

- Packaging

Tray: S7509

Volume: S7509-10

Specifications:

Receiving surface	10 × 2 mm
Encapsulated	ceramics
Package type	Surface mount type
Refrigeration	Uncooled type

YJJ S7509 Silicon PIN Photodiode Is Used For Spatial Light Transmission Where A Wide Field Of View Is Required 0
