Product Details:
|
| Reverse Voltage (Max.): | 20 V | Spectral Response Range: | 320 To 1100 Nm |
|---|---|---|---|
| Maximum Sensitivity Wavelength (typical Value): | 960 Nm | Photosensitivity (typical Value): | 0.55A /W |
| Highlight: | YJJ S6775 Silicon PIN Photodiode,Plastic SIP Silicon PIN Photodiode |
||
Product Description:

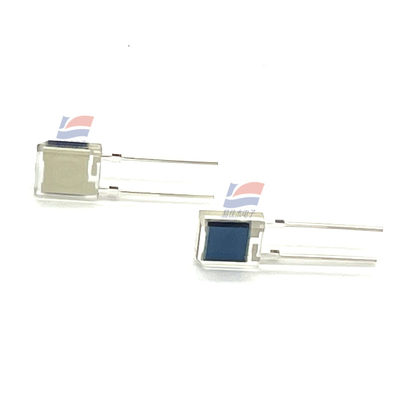

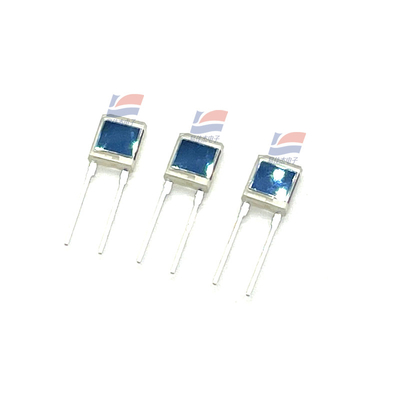

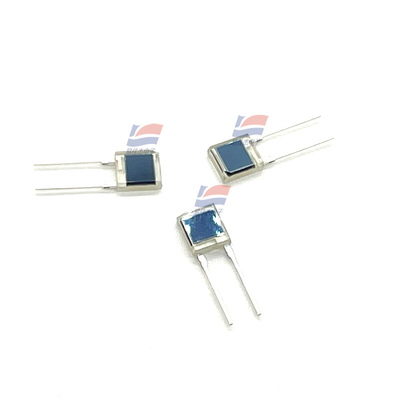

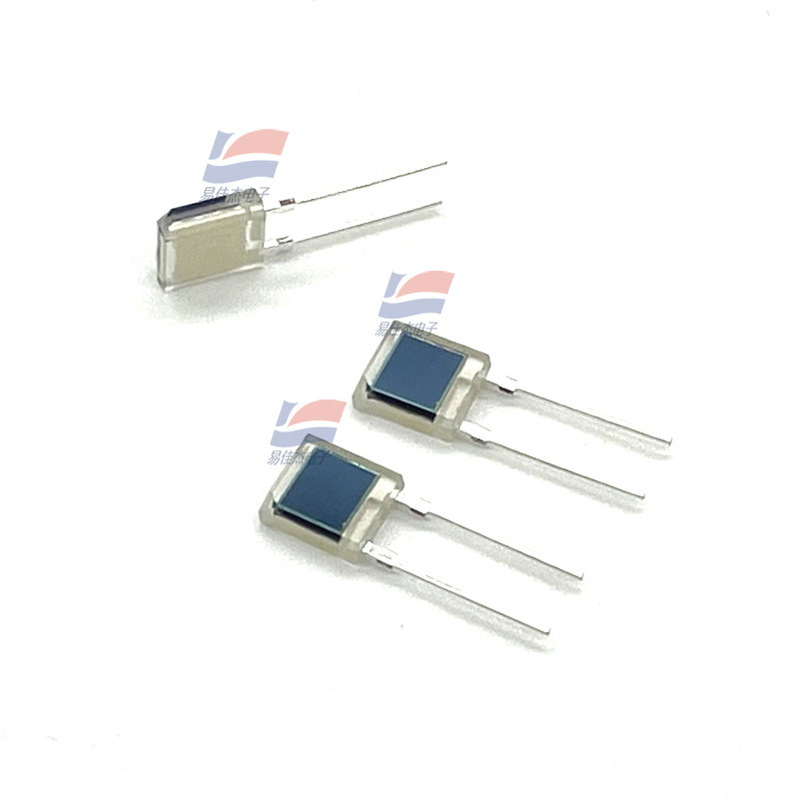

S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
Features:
S6775 is a silicon PIN photodiode with a large acceptor surface molded into a clear plastic SIP for detection in the near infrared range. This silicon PIN photodiode has the characteristics of high sensitivity, high speed response and large light absorption.
peculiarity
- Visible to the near infrared
- High sensitivity
- High speed response
- Get the shine
- Plastic package: 7 × 7.8mm
- Receiving surface size: 5.5 × 4.8mm
Receiving surface 5.5 × 4.8 mm
Encapsulation plastic
Package category --
Refrigeration uncooled type
Reverse voltage (Max.) 20 V
Spectral response range 320 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photosensitivity (typical value) 0.55A /W
Dark current (Max.) 10000 pA
Cut-off frequency (typical value) 15 MHz
Junction capacitance (typical) 40 pF
Noise equivalent power (typical value) 1.8×10-14 W/Hz1/2
Typical values of measurement conditions Ta=25°C, sensitivity: λ = 780 nm, dark current: VR = 10 V, cut-off frequency: VR = 10 V, junction capacitance: VR = 10 V, f = 1 MHz, noise equivalent power: VR = 10 V, unless otherwise stated
Specifications:
| Photosensitivity (typical value) | 0.55 A/W |
| Dark current (Max.) | 10000 pA |
| Rise time (typical value) | 0.5μs |
| Junction capacitance (typical value) | 40 pF |
