Product Details:
|
| Plastic Package: | 7 × 7.8mm | Receiving Surface Size: | 5.5 × 4.8mm |
|---|---|---|---|
| Refrigeration: | Uncooled Type | Reverse Voltage (Max.): | 20V |
| Highlight: | 5.5 × 4.8mm Silicon PIN Photodiode,Single-in-line package Silicon PIN Photodiode,Plastic SIP Silicon PIN Photodiode |
||
Product Description:

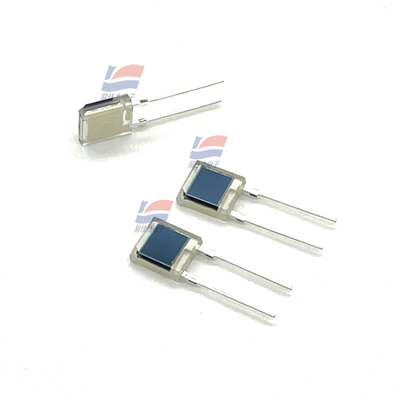

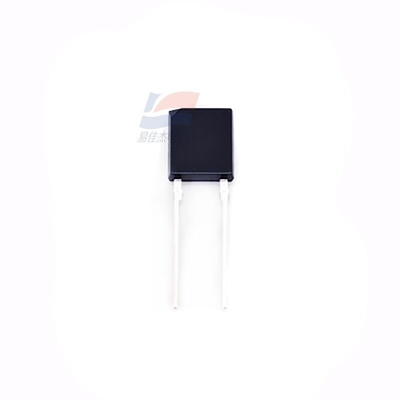

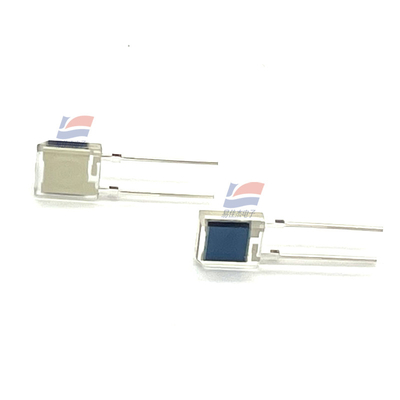

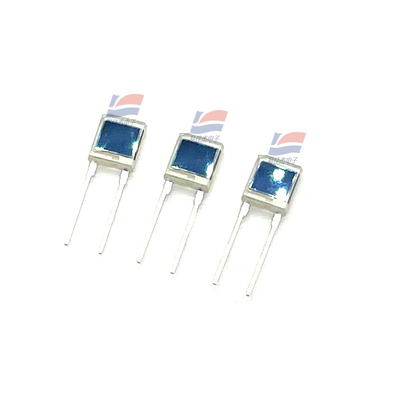

S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
Features:
Plastic SIP (single-in-line package)
The S6775-01 is a silicon PIN photodiode with a large light-receiving surface molded into a visible cut plastic SIP for detection in the near infrared range only. This silicon PIN photodiode has the characteristics of high sensitivity, high speed response and large light absorption.
peculiarity
- Visible light cutoff - high sensitivity - high speed response - large sensitive surface
- Plastic package: 7 × 7.8mm
- Receiving surface size: 5.5 × 4.8mm
Receiving surface 5.5 × 4.8 mm
Encapsulation plastic
Package category --
Refrigeration uncooled type
Reverse voltage (Max.) 20 V
Spectral response range 700 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photosensitivity (typical value) 0.68 A/W
Dark current (Max.) 10000 pA
Cut-off frequency (typical value) 15 MHz
Junction capacitance (typical) 40 pF
Noise equivalent power (typical value) 1.9×10-14 W/Hz1/2
Typical values of measurement conditions Ta=25°C, sensitivity: λ = 780 nm, dark current: VR = 10 V, cut-off frequency: VR = 10 V, junction capacitance: VR = 10 V, f = 1 MHz, noise equivalent power: VR = 10 V, unless otherwise stated
Spectral sensitivity characteristic
Specifications:
| Photosensitivity (typical value) | 0.68A/W |
| Dark current (Max.) | 10000 pA |
| Rise time (typical value) | 0.5μs |
| Junction capacitance (typical value) | 40 pF |
