Product Details:
|
| Receiving Surface: | 9 X 9 Mm | Maximum Sensitivity Wavelength (typical Value): | 960 Nm |
|---|---|---|---|
| Sensitivity (typical Value): | 0.6A /W | Dark Current (Max.): | 50 NA |
| Highlight: | 2D PSD Position Sensitive Detector,Improved Surface Mount PSD |
||
Product Description:

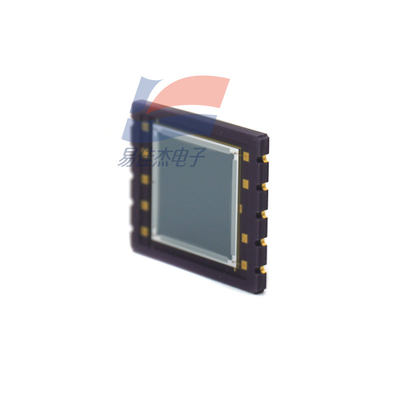

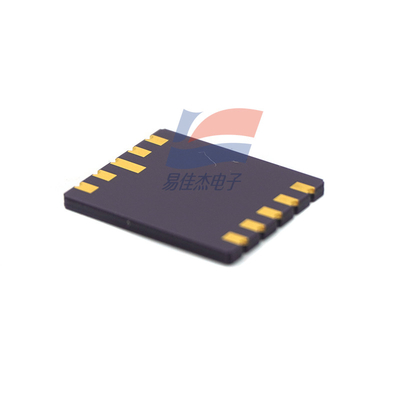

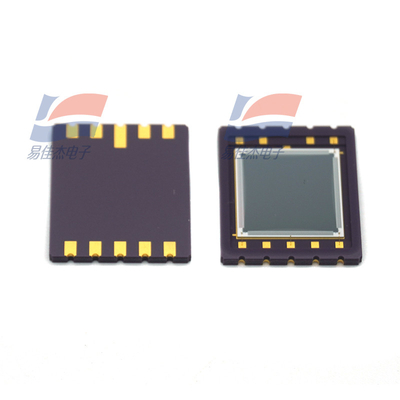

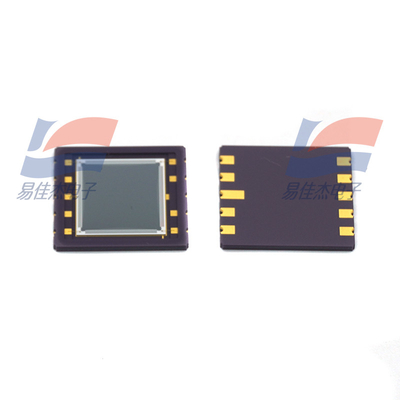

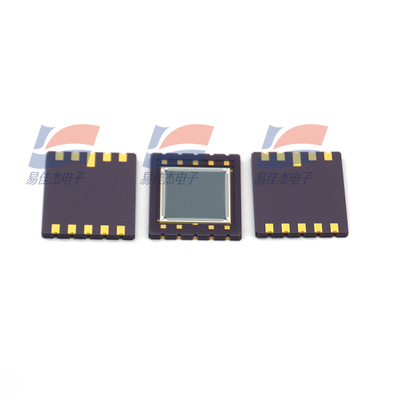

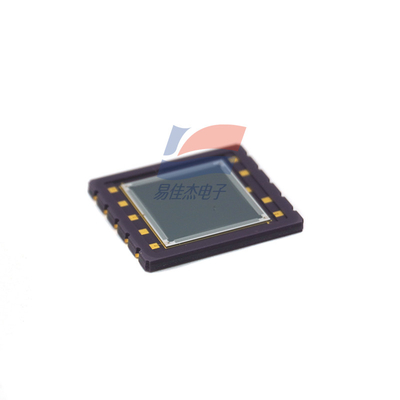

S5991-01 S5991-11 Position Sensitive Detector Light Sensor 2D PSD With Improved Surface Mount Four-sided Models
Features:
Improved four-sided models for surface mount
peculiarity
- Large sensitive surface: 9 × 9 mm
- Chip carrier package for surface mount thin package: 1.26 mmt
- Improved four-sided model (pincushion type) provides excellent position detection
- Provide evaluation board
- Packaging
Tray: S5991-01
Volume: S5991-11
Detailed parameter
Receiving surface 9 x 9 mm
Encapsulated ceramics
Maximum sensitivity wavelength (typical value) 960 nm
Sensitivity (typical value) 0.6A /W
Package type Surface mount type
Sensitivity wavelength range 320 to 1100
Dark current (Max.) 50 nA
Rise time (typical value) 2 μs
Junction capacitance (typical value) 500 pF
Interelectrode resistance (typical value) 7 kΩ
Typical value for measurement conditions Ta = 25°C unless otherwise stated
Specifications:
| Photosensitivity (typical value) | 0.6A/W |
| Dark current (Max.) | 50 pA |
| Rise time (typical value) | 2μs |
| Junction capacitance (typical value) | 500 pF |
