Product Details:
|
| Receiving Surface: | 2.4 × 2.4 Mm | Package: | Ceramic |
|---|---|---|---|
| Encapsulation: | Category | Refrigeration: | Uncooled Type |
| Highlight: | Infrared Band Silicon Photodiodes,Precision Photometry Silicon Photodiodes,Ultraviolet Silicon Photodiodes |
||
Product Description:

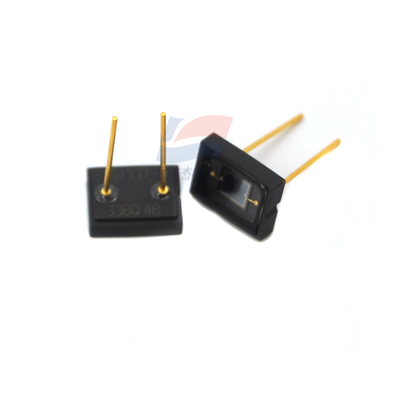

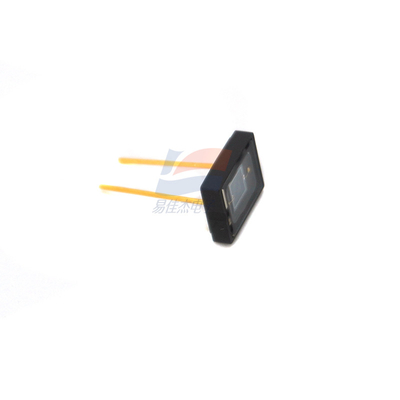

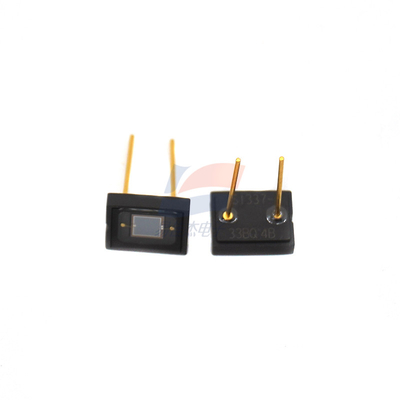

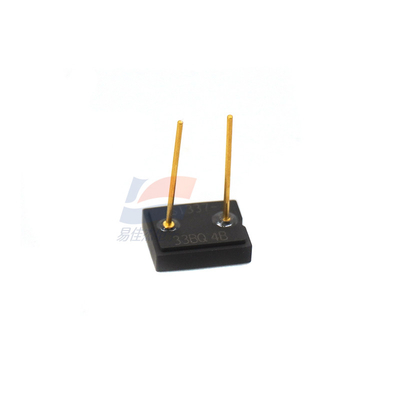

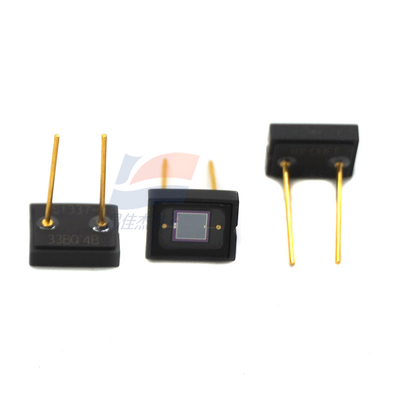

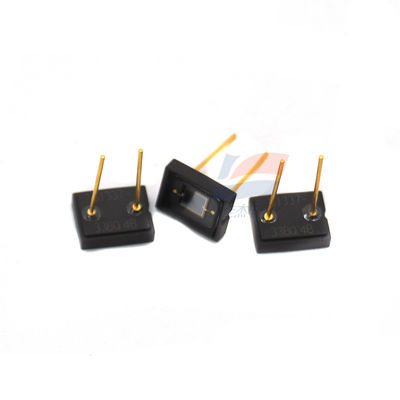

S1337-33BQ Is Suitable For Precision Photometry In The Ultraviolet To Infrared Band Silicon Photodiodes Photodiodes
Features:
Receiving surface 2.4 × 2.4 mm
Encapsulated ceramics
Package category --
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 190 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photosensitivity (typical value) 0.5A /W
Dark current (Max.) 30 pA
Rise time (typical value) 0.2μs
Junction capacitance (typical) 65 pF
Noise equivalent power (typical value) 8.1×10-15 W/Hz1/2
Typical values of measurement conditions Ta=25°C, photosensitivity: λ = 960 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated
Specifications:
| Spectral response range | 190 to 1100 nm |
| Maximum sensitivity wavelength (typical value) | 960 nm |
| Photosensitivity (typical value) | 0.5A /W |
| Dark current (Max.) | 100 pA |
