Product Details:
|
| Receiving Surface: | 1.1 × 1.1 Mm | Package: | Metal |
|---|---|---|---|
| Package Category: | TO-18 | Reverse Voltage (Max.): | 5V |
| Highlight: | UV Silicon Photodiode,1.1 × 1.1 mm Silicon Photodiode,Precision Photometry Silicon Photodiode |
||
Product Description:

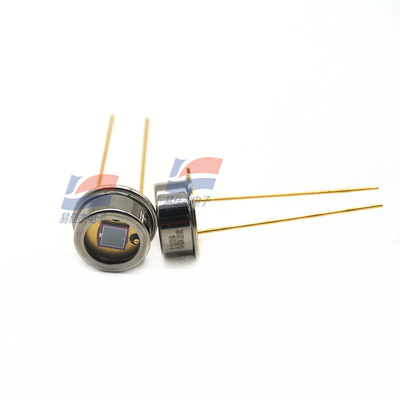

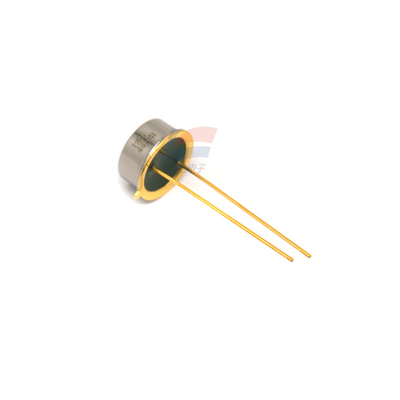

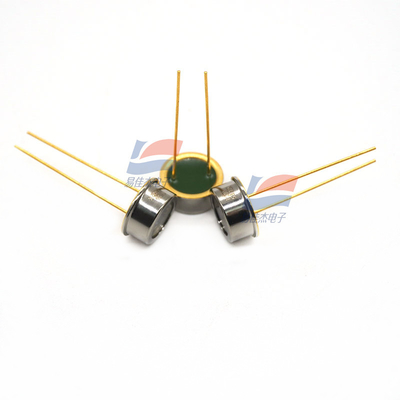

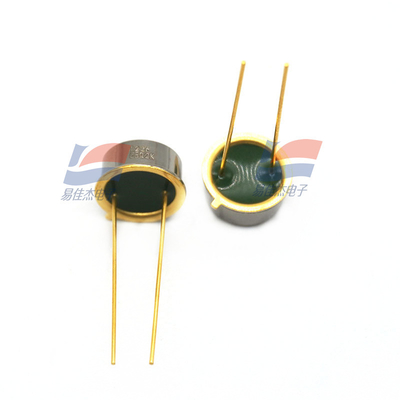

S1336-18BQ Is Suitable For Precision Photometry In The Ultraviolet To Infrared Band Silicon Photodiodes Photodiodes
Features:
Suitable for precise photometry in ultraviolet to near-infrared bands
peculiarity
- High sensitivity in UV band
- Low capacitance
- High reliability
Receiving surface 1.1 × 1.1 mm
Encapsulation metal
Package category TO-18
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 190 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photosensitivity (typical value) 0.5A /W
Dark current (Max.) 20 pA
Rise time (typical value) 0.1μs
Junction capacitance (typical) 20 pF
Noise equivalent power (typical value) 5.7×10-15 W/Hz1/2
Measurement conditions Typical value Ta = 25°C, unless otherwise stated,
Sensitivity: λ = 960 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz
Specifications:
| Spectral response range | 190 to 1100 nm |
| Maximum sensitivity wavelength (typical value) | 960 nm |
| Photosensitivity (typical value) | 0.5A /W |
| Dark current (Max.) | 20 pA |
