Product Details:
|
| Package: | Metal | Package Category: | TO18 |
|---|---|---|---|
| Refrigeration: | Uncooled Type | Reverse Voltage (Max.): | 5V |
| Highlight: | Near-Infrared Bands Silicon Photodiode,Precision Photometry Silicon Photodiode,Uncooled Type Silicon Photodiode |
||
Product Description:

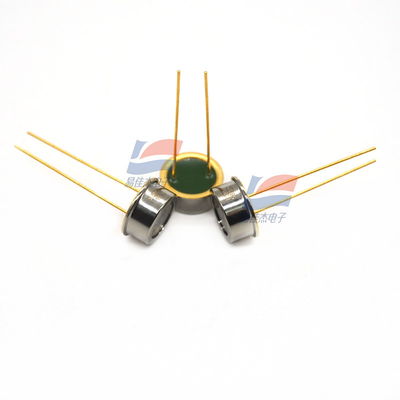

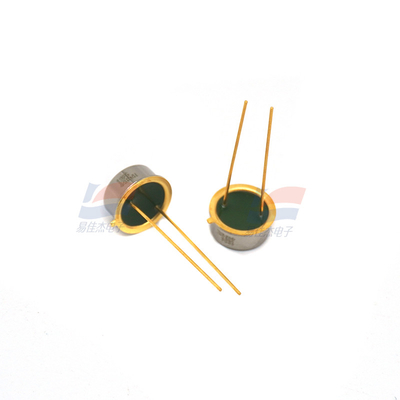

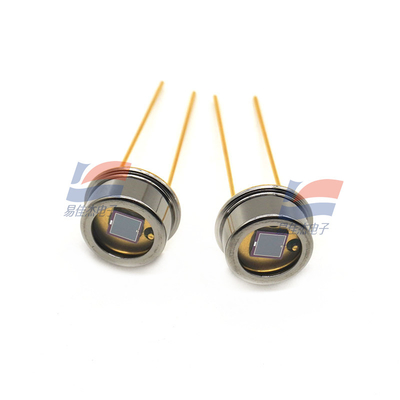

S1336-5BK Silicon Photodiode Is Highly Reliable For Precision Photometry In Ultraviolet To Near-Infrared bands
Features:
Suitable for precise photometry in ultraviolet to near-infrared bands
peculiarity
- High sensitivity in UV band
- Low capacitance
- High reliability
Receiving surface 2.4× 2.4mm
Encapsulation metal
Package category TO-18
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 320 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photosensitivity (typical value) 0.5A /W
Dark current (Max.) 20 pA
Rise time (typical value) 0.1μs
Junction capacitance (typical) 20 pF
Noise equivalent power (typical value) 5.7×10-15 W/Hz1/2
Measurement conditions Typical value Ta = 25°C, unless otherwise stated,
Sensitivity: λ = 960 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz
Specifications:
| Spectral response range | 320 to 1100 nm |
| Maximum sensitivity wavelength (typical value) | 960 nm |
| Photosensitivity (typical value) | 0.5A /W |
| Dark current (Max.) | 20 pA |
